Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Lighting (ext) / Height Control Sensor / Installation

INSTALLATION

CAUTION / NOTICE / HINT

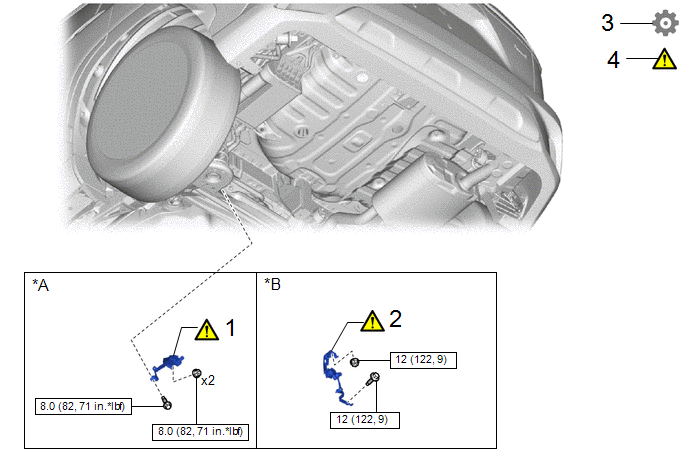

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

89408C

-

-

2

REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

89408C

-

-

3

PERFORM INITIALIZATION

-

-

-

4

INSPECT HEADLIGHT AIMING

-

-

-

*A

for 2WD

*B

for AWD

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for 2WD)

NOTICE:

If the rear height control sensor sub-assembly LH has been struck or dropped, replace it with a new one.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

2. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for AWD)

NOTICE:

If the rear height control sensor sub-assembly LH has been struck or dropped, replace it with a new one.

Torque:

12 N·m {122 kgf·cm, 106 in·lbf}

3. PERFORM INITIALIZATION

Click here

4. INSPECT HEADLIGHT AIMING

Click here
