Toyota Corolla Cross: High Mounted Stop Light Assembly

Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Lighting (ext) / High Mounted Stop Light Assembly

Removal

REMOVAL

CAUTION / NOTICE / HINT

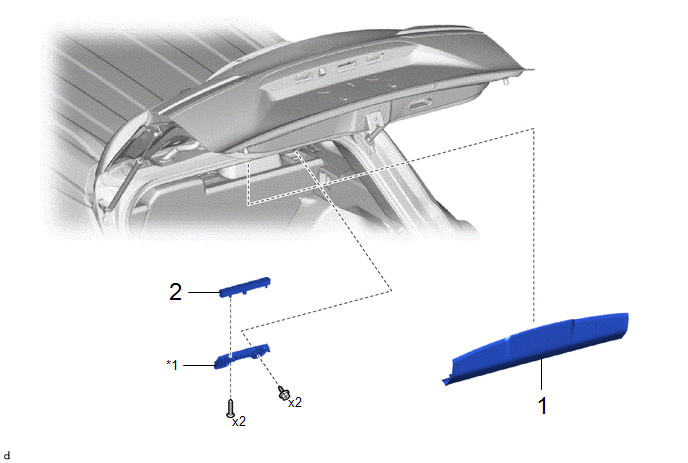

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

2

CENTER STOP LIGHT ASSEMBLY

81570

-

-

-

*1

CENTER STOP LIGHT BRACKET

-

-

PROCEDURE

1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

Click here

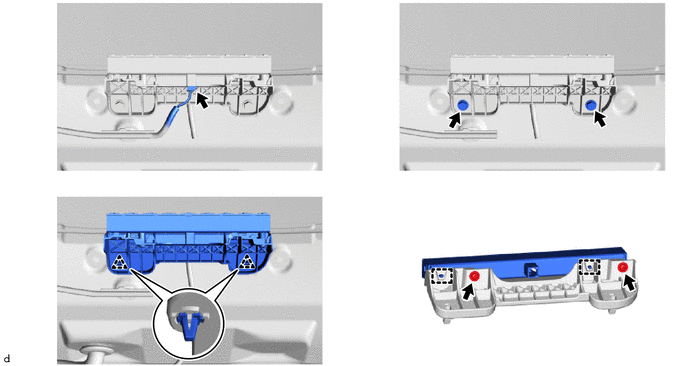

2. REMOVE CENTER STOP LIGHT ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT CENTER STOP LIGHT ASSEMBLY

(a) Check that the center stop light assembly.

(1) Apply auxiliary battery voltage to the center stop light assembly and check that the light comes on.

OK:

Tester Connection

Specified Condition

U1-1 (B) - Auxiliary battery positive (+)

U1-2 (E) - Auxiliary battery negative (-)

Center stop light comes on

If the result is not as specified, replace the center stop light assembly.

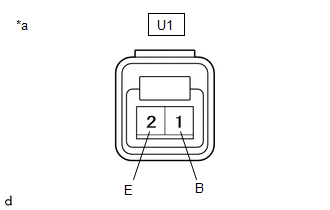

*a

Component without harness connected

(Center Stop Light Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

CENTER STOP LIGHT ASSEMBLY

81006

-

-

-

2

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

*1

CENTER STOP LIGHT BRACKET

-

-

PROCEDURE

1. INSTALL CENTER STOP LIGHT ASSEMBLY

2. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
