Toyota Corolla Cross (2022-2026) Service Manual / Engine & Hybrid System / M20a-fks (engine Control) / Mass Air Flow Meter / Installation

INSTALLATION

CAUTION / NOTICE / HINT

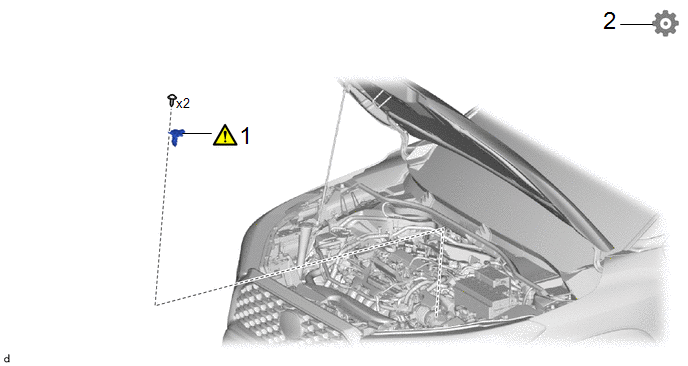

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

MASS AIR FLOW METER SUB-ASSEMBLY

22204

-

-

2

PERFORM INITIALIZATION

-

-

-

PROCEDURE

1. INSTALL MASS AIR FLOW METER SUB-ASSEMBLY

HINT:

Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

Click here

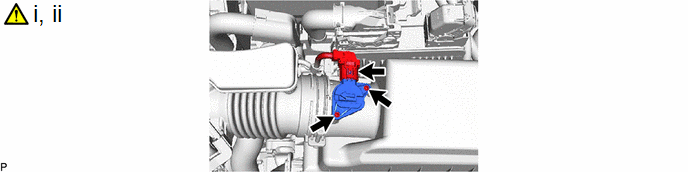

(1) Install the mass air flow meter sub-assembly to the air cleaner cap sub-assembly with the 2 screws.

NOTICE:

  • If the mass air flow meter sub-assembly has been struck or dropped, replace it.
  • If reusing the mass air flow meter sub-assembly, be sure to inspect the O-ring.
  • Make sure that the O-ring is not cracked or moved out of place when installing the mass air flow meter sub-assembly.

(2) Connect the mass air flow meter sub-assembly connector.

2. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

Click here
