Toyota Corolla Cross: Front Passenger Side Power Window Switch

Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Window / Glass / Front Passenger Side Power Window Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

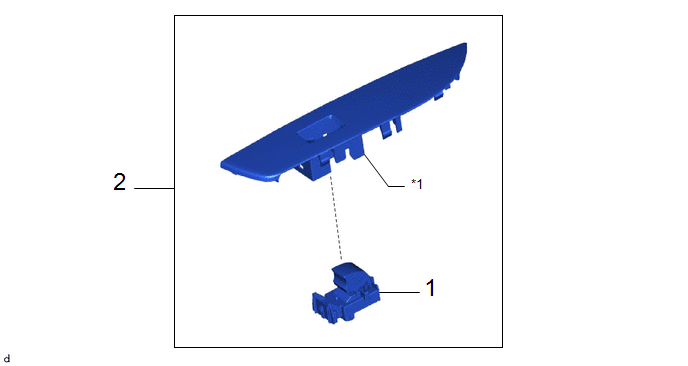

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

2

POWER WINDOW REGULATOR SWITCH ASSEMBLY

84810

-

-

-

*1

FRONT DOOR UPPER ARMREST BASE PANEL

-

-

PROCEDURE

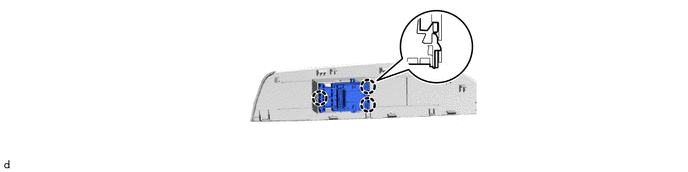

1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click here

2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Check the resistance.

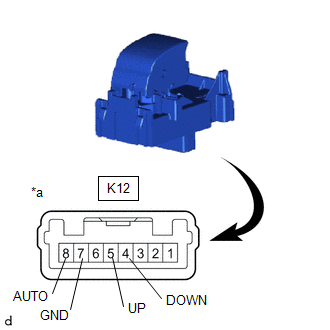

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

K12-5 (UP) - K12-7 (GND)

Auto up or up position

Below 100 Ω

K12-4 (DOWN) - K12-7 (GND)

Auto down or down position

Below 100 Ω

K12-8 (AUTO) - K12-7 (GND)

Auto up or auto down position

Below 100 Ω

K12-5 (UP) - K12-7 (GND)

Off

10 kΩ or higher

K12-4 (DOWN) - K12-7 (GND)

Off

10 kΩ or higher

K12-8 (AUTO) - K12-7 (GND)

Off

10 kΩ or higher

If the result is not as specified, replace the power window regulator switch assembly.

*a

Component without harness connected

(Power Window Regulator Switch Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

POWER WINDOW REGULATOR SWITCH ASSEMBLY

84810

-

-

-

2

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

-

*1

FRONT DOOR UPPER ARMREST BASE PANEL

-

-

PROCEDURE

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
