Toyota Corolla Cross: Crankshaft Position Sensor "A" Circuit Short to Ground (P033511)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fks (engine Control) / Sfi System / Crankshaft Position Sensor "A" Circuit Short to Ground (P033511)

DESCRIPTION

The crankshaft position sensor system consists of a crankshaft position sensor plate and Magneto Resistance Element (MRE) type sensor. The crankshaft position sensor plate has 34 teeth at 10° intervals (2 teeth are missing for detecting top dead center), and is installed on the crankshaft. The crankshaft position sensor generates 34 signals per crankshaft revolution. The ECM uses the crankshaft position sensor signal (NE signal) to detect the crankshaft position and engine speed.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P033511

Crankshaft Position Sensor "A" Circuit Short to Ground

Diagnosis condition:

  • Ignition switch ON

Abnormal condition:

  • The crankshaft position sensor output voltage is less than 0.3 V.

Malfunction time:

  • 4 seconds or more

Trip logic:

  • 1 trip detection logic

Detection conditions:

  • Continuous

Sensors/components used for detection (Main):

  • Crankshaft position sensor

Sensors/components used for detection (Related):

  • Camshaft position sensor
  • Short in crankshaft position sensor circuit
  • Crankshaft position sensor
  • ECM

Comes on

  • SAE Code: P0337
  • DTC for Mexico Models: Applies
  • Reference: Inspection using an oscilloscope.

    HINT:

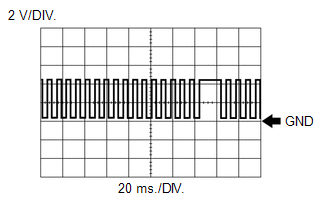

    The correct waveform is as shown.

    ECM Terminal Name

    Between NE+ and NE-

    Tester Range

    2 V/DIV., 20 ms./DIV.

    Condition

    Idling with warm engine

MONITOR DESCRIPTION

When the ignition switch is turned ON and the output voltage of the crankshaft position sensor is less than 0.3 V for 4 seconds or more, the ECM determines that the crankshaft position sensor circuit is malfunctioning and illuminates the MIL and stores a DTC.

MONITOR STRATEGY

Related DTCs

P0337: Crankshaft position sensor range check (Low voltage)

Required Sensors/Components (Main)

Crankshaft position sensor

Required Sensors/Components (Related)

Camshaft position sensor

Frequency of Operation

Continuous

Duration

4 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever following DTCs are not present

None

All of the following conditions are met

-

Auxiliary battery voltage

8 V or higher

Ignition switch

ON

Starter

Off

TYPICAL MALFUNCTION THRESHOLDS

Crankshaft position sensor voltage

Less than 0.3 V

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON [A].
  7. Turn the GTS on.
  8. Wait 5 seconds or more [B].
  9. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  10. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  12. Proceed to the next screen and enter the DTC to be checked.
  13. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

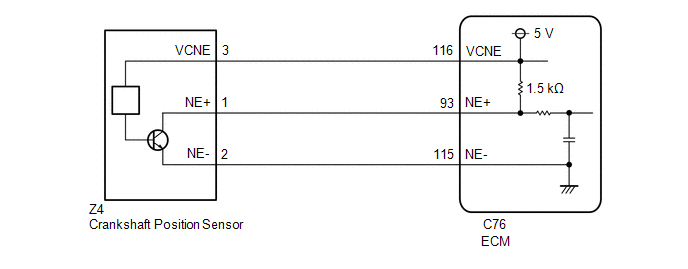

WIRING DIAGRAM

CAUTION / NOTICE / HINT

HINT:

  • The engine speed can be checked by using the GTS. To perform the check, follow the procedures below:
    1. Connect the GTS to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the GTS on.
    4. Enter the following menus: Powertrain / Engine / Data List / Engine Speed.
    5. Start the engine.
    • The engine speed may be indicated as zero despite the engine running normally. This is caused by a lack of NE signals from the crankshaft position sensor. Alternatively, the engine speed may be indicated as lower than the actual engine speed if the crankshaft position sensor output voltage is insufficient.
  • Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

2.

CHECK DTC OUTPUT (DTC P033511 OR P033515)

HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.

(a) Disconnect the crankshaft position sensor connector.

(b) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

HINT:

When the ECM, wire harnesses and connectors are normal, DTC P033515 will be stored when the connector of the sensor is disconnected.

Result

Proceed to

DTC P033515 is output

A

DTC P033511 is output

B

A

REPLACE CRANKSHAFT POSITION SENSOR

B

3.

CHECK HARNESS AND CONNECTOR (CRANKSHAFT POSITION SENSOR - ECM)

(a) Disconnect the crankshaft position sensor connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Z4-1 (NE+) or C76-93 (NE+) - Body ground and other terminals

Always

10 kΩ or higher

Z4-2 (NE-) or C76-115 (NE-) - Body ground and other terminals

Always

10 kΩ or higher

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
