Toyota Corolla Cross: Disassembly

Toyota Corolla Cross (2022-2026) Service Manual / Brake / Brake System (other) / Brake Booster (for Gasoline Model) / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

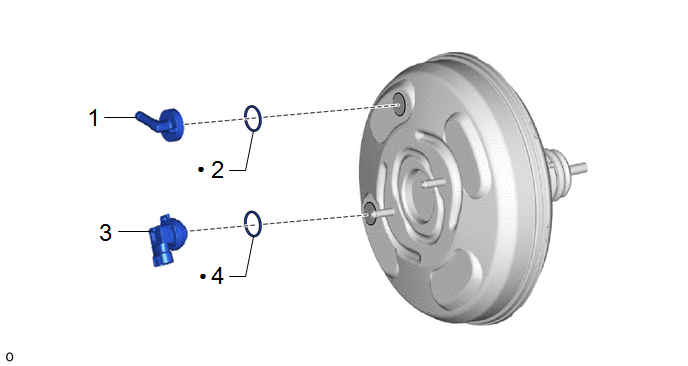

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

BRAKE VACUUM CHECK VALVE ASSEMBLY

44730

-

-

-

2

CHECK VALVE GROMMET

-

-

-

-

3

VACUUM SENSOR ASSEMBLY

89420H

-

-

-

4

VACUUM SENSOR GROMMET

89420K

-

-

-

●

Non-reusable part

-

-

PROCEDURE

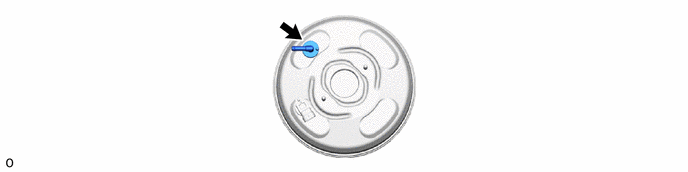

1. REMOVE BRAKE VACUUM CHECK VALVE ASSEMBLY

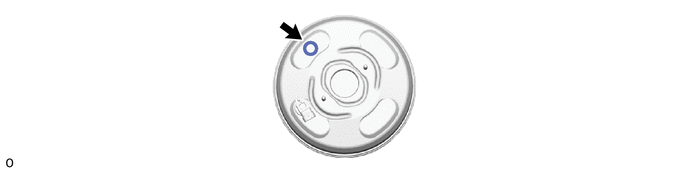

2. REMOVE CHECK VALVE GROMMET

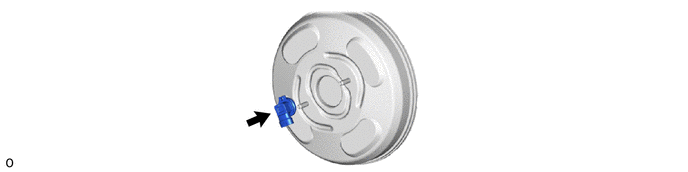

3. REMOVE VACUUM SENSOR ASSEMBLY

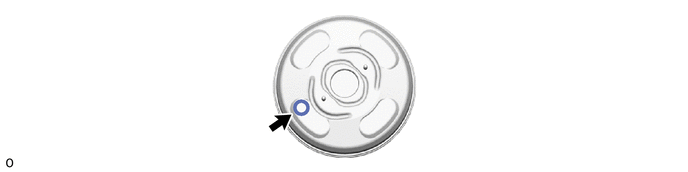

4. REMOVE VACUUM SENSOR GROMMET
