Toyota Corolla Cross (2022-2024) Service Manual / Brake / Brake System (other) / Brake Booster (for Gasoline Model) / Inspection

INSPECTION

PROCEDURE

1. INSPECT BRAKE VACUUM CHECK VALVE ASSEMBLY

(a) Check that there is ventilation from the booster side to the engine side, and no ventilation from the engine side to the booster side of the brake vacuum check valve assembly.

HINT:

If the result is not as specified, replace the brake vacuum check valve assembly.

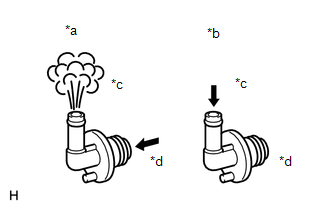

*a

Ventilation

*b

No Ventilation

*c

Engine Side

*d

Brake Booster Assembly Side
