PARTS LOCATION

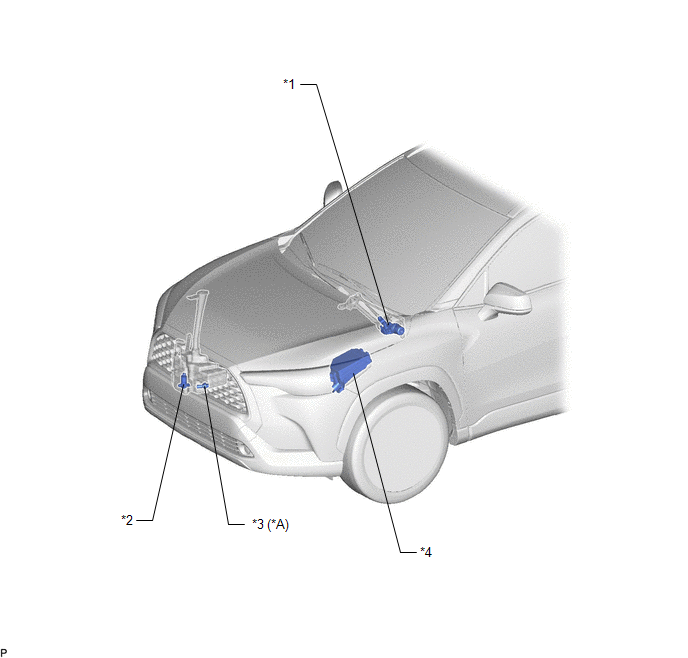

ILLUSTRATION

*A

w/ Washer Fluid Level Warning System

-

-

*1

WINDSHIELD WIPER MOTOR ASSEMBLY

*2

WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

*3

LEVEL WARNING SWITCH ASSEMBLY

*4

NO. 1 ENGINE ROOM RELAY BLOCK ASSEMBLY

- WIPER FUSE

- WASHER FUSE

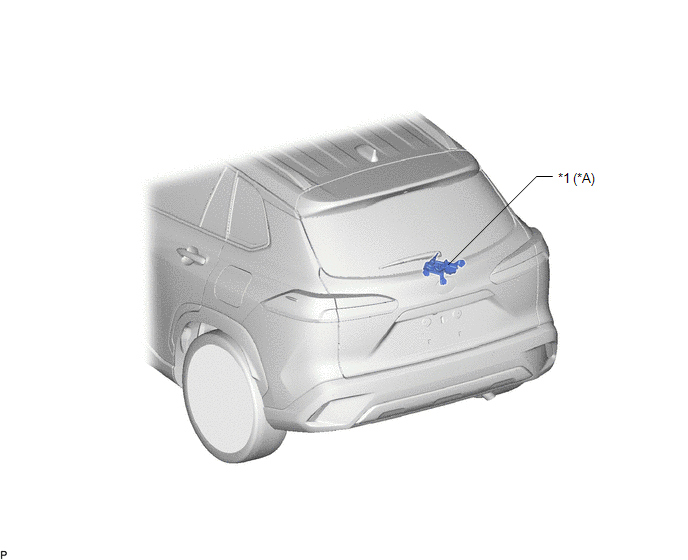

ILLUSTRATION

*A

w/ Rear Wiper System

-

-

*1

REAR WIPER MOTOR ASSEMBLY

-

-

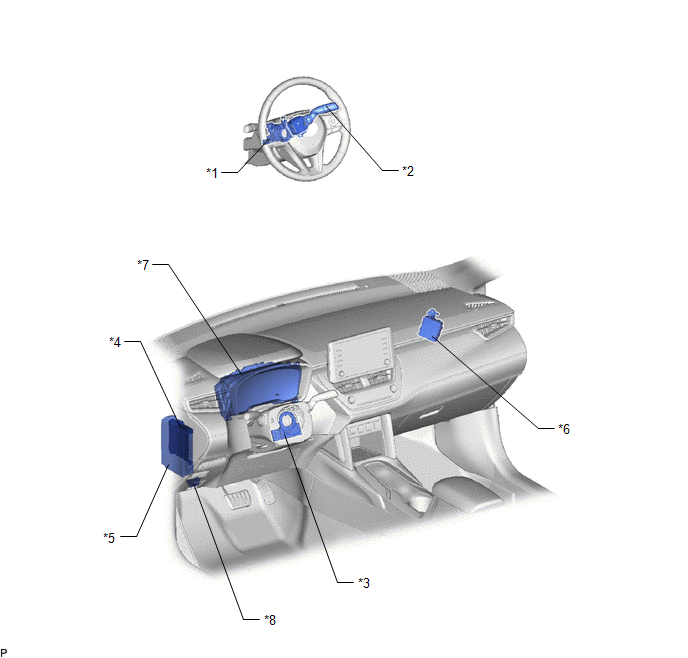

ILLUSTRATION

*1

STEERING WHEEL SWITCH HOUSING

*2

WINDSHIELD WIPER SWITCH ASSEMBLY

*3

STEERING SENSOR

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

POWER DISTRIBUTION BOX ASSEMBLY

- WIPER RR FUSE

*6

WINDSHIELD WIPER RELAY ASSEMBLY

*7

COMBINATION METER ASSEMBLY

*8

DLC3
