Toyota Corolla Cross: Components

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Heating / Air Conditioning / Refrigerant Line / Components

COMPONENTS

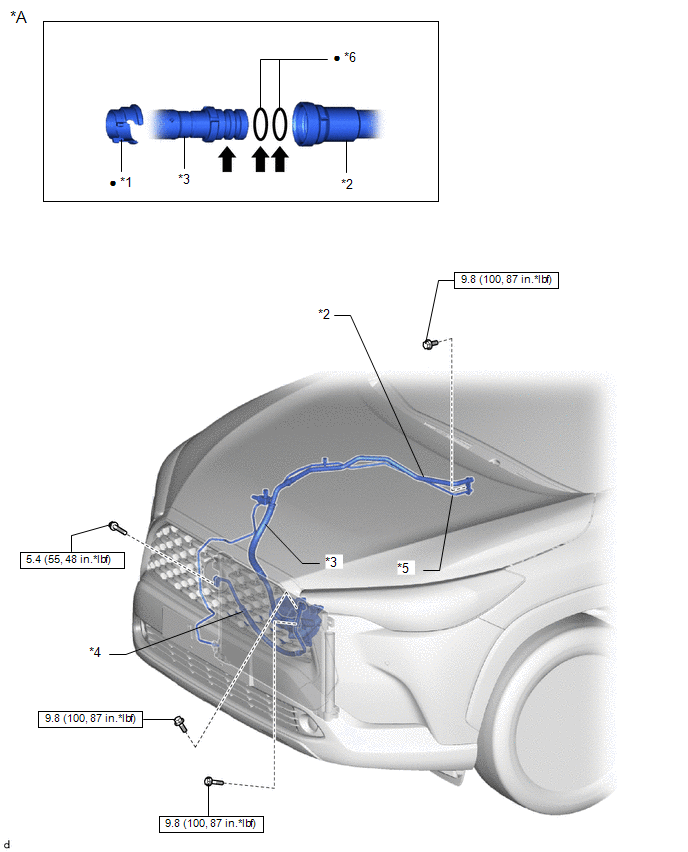

ILLUSTRATION

*A

for Gasoline Model

-

-

*1

PIPING CLAMP

*2

SUCTION PIPE SUB-ASSEMBLY

*3

SUCTION HOSE SUB-ASSEMBLY

*4

DISCHARGE HOSE SUB-ASSEMBLY

*5

AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY

*6

O-RING

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Compressor oil ND-OIL 12 or equivalent

-

-

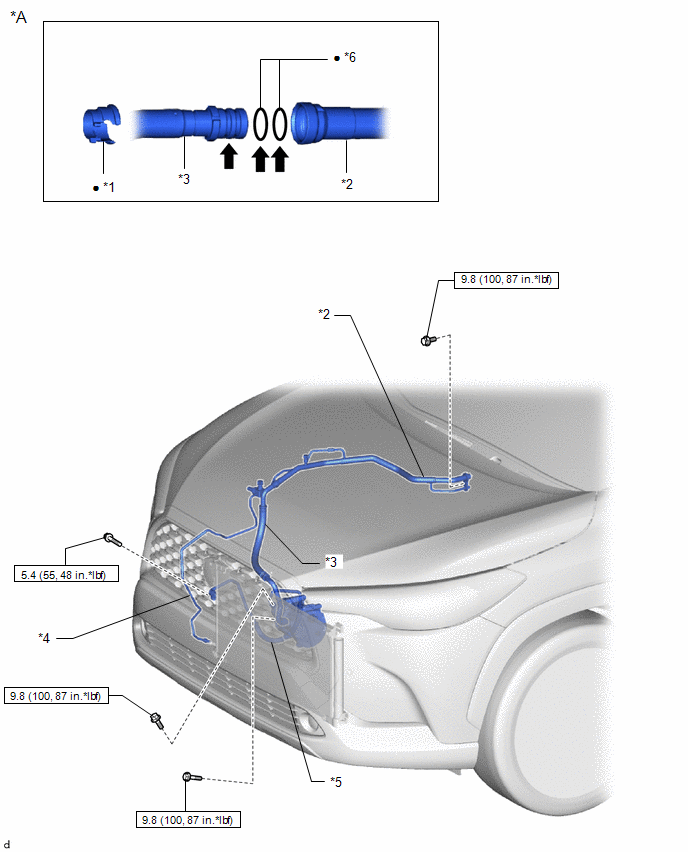

ILLUSTRATION

*A

for HEV Model

-

-

*1

PIPING CLAMP

*2

NO. 2 AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY

*3

SUCTION HOSE SUB-ASSEMBLY

*4

AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY

*5

DISCHARGE HOSE SUB-ASSEMBLY

*6

O-RING

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Compressor oil ND-OIL 11 or equivalent

-

-

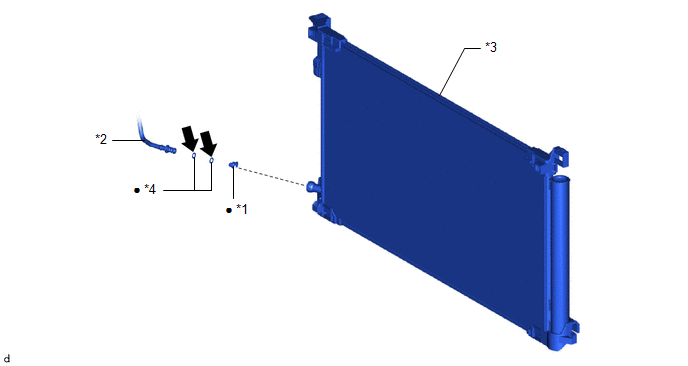

ILLUSTRATION

*1

PIPING CLAMP

*2

AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY

*3

COOLER CONDENSER ASSEMBLY

*4

O-RING

●

Non-reusable part

for Gasoline Model:

Compressor oil ND-OIL 12 or equivalent

for HEV Model:

Compressor oil ND-OIL 11 or equivalent
