Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

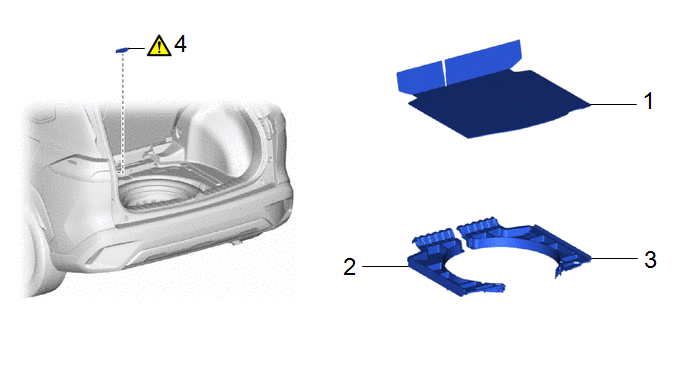

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) |
|
1 | DECK BOARD ASSEMBLY |
- | - |
- | - |
|
2 | DECK FLOOR BOX LH |
64997 | - |
- | - |
|
3 | DECK FLOOR BOX RH |
64995 | - |
- | - |
|
4 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY |
899A0B |
.gif) |
- | - |
PROCEDURE
1. REMOVE DECK BOARD ASSEMBLY
Click here
2. REMOVE DECK FLOOR BOX LH
Click here
3. REMOVE DECK FLOOR BOX RH
Click here

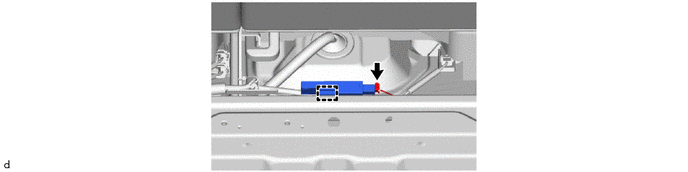

4. REMOVE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
|
|
NOTICE: Be careful when removing the No. 3 indoor electrical key antenna assembly. If the No. 3 indoor electrical key antenna assembly is dropped, replace it with a new one. |
