Toyota Corolla Cross: Electrical Key Oscillator (for Outside Luggage Compartment)

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Electrical Key Oscillator (for Outside Luggage Compartment)

Removal

REMOVAL

CAUTION / NOTICE / HINT

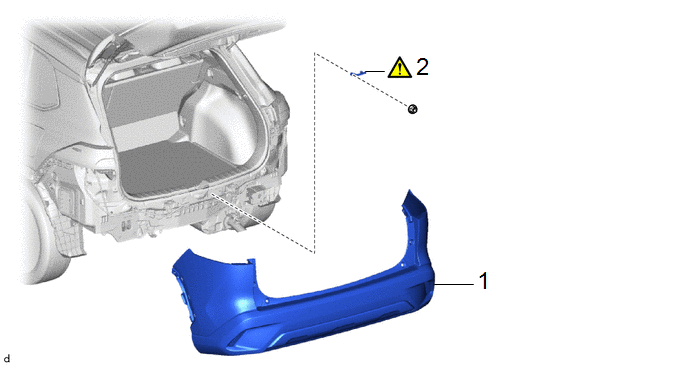

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR BUMPER ASSEMBLY

-

-

-

-

2

ELECTRICAL KEY ANTENNA

89997

-

-

PROCEDURE

1. REMOVE REAR BUMPER ASSEMBLY

  • for Sport Package:

    Click here

  • except Sport Package:

    Click here

2. REMOVE ELECTRICAL KEY ANTENNA

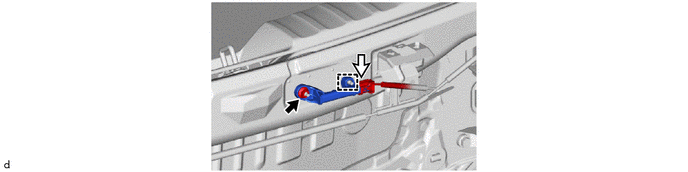

NOTICE:

Be careful when removing the electrical key antenna. If the electrical key antenna is dropped, replace it with a new one.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

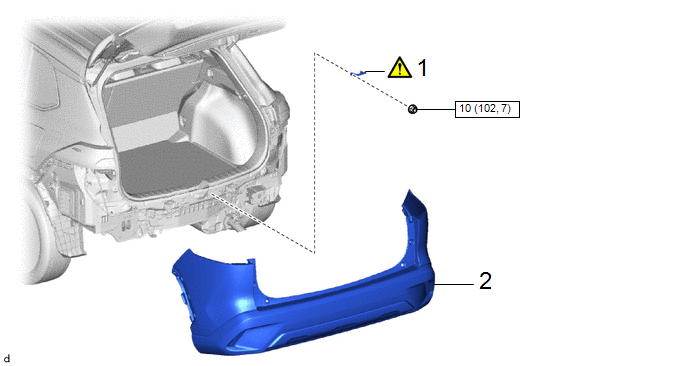

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

ELECTRICAL KEY ANTENNA

89997

-

-

2

REAR BUMPER ASSEMBLY

-

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL ELECTRICAL KEY ANTENNA

NOTICE:

Be careful when installing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

2. INSTALL REAR BUMPER ASSEMBLY

  • for Sport Package:

    Click here

  • except Sport Package:

    Click here
