Toyota Corolla Cross: Camshaft Position Sensor "B" Bank 1 Circuit Short to Ground (P036511)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fks (engine Control) / Sfi System / Camshaft Position Sensor "B" Bank 1 Circuit Short to Ground (P036511)

DESCRIPTION

The camshaft position sensor (for exhaust camshaft) (EV1 signal) consists of a magnet and MRE (Magneto Resistance Element).

The exhaust camshaft has a timing rotor for the camshaft position sensor. When the exhaust camshaft rotates, changes occur in the air gaps between the timing rotor and MRE, which affects the magnetic field. As a result, the resistance of the MRE material fluctuates. The camshaft position sensor converts the camshaft rotation data to pulse signals, uses the pulse signals. The ECM uses the pulse signals to determine the camshaft angle. Then the ECM uses this data to control fuel injection duration, injection timing and the Variable Valve Timing (VVT) system.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P036511

Camshaft Position Sensor "B" Bank 1 Circuit Short to Ground

Diagnosis condition:

  • 2 seconds or more have elapsed after the ignition switch is turned ON.

Abnormal condition:

  • The camshaft position sensor (for exhaust camshaft) output voltage is less than 0.3 V.

Malfunction time:

  • 4 seconds or more

Trip logic:

  • 1 trip detection logic

Detection conditions:

  • Continuous

Sensors/components used for detection (Main):

  • Camshaft position sensor (for exhaust camshaft)

Sensors/components used for detection (Related):

  • Crankshaft position sensor
  • Short in camshaft position sensor (for exhaust camshaft) circuit
  • Camshaft position sensor (for exhaust camshaft)
  • ECM

Comes on

  • SAE Code: P0367
  • DTC for Mexico Models: Applies

Reference: Inspection using an oscilloscope.

Click here

MONITOR DESCRIPTION

2 seconds or more after the ignition switch has been turned ON, if the output voltage of the camshaft position sensor (for exhaust camshaft) is less than 0.3 V for 4 seconds or more, the ECM determines that the camshaft position sensor (for exhaust camshaft) circuit is malfunctioning and illuminates the MIL and stores a DTC.

MONITOR STRATEGY

Related DTCs

P0367: Exhaust camshaft position sensor range check (low voltage)

Required Sensors/Components (Main)

Camshaft position sensor (for exhaust camshaft)

Required Sensors/Components (Related)

Crankshaft position sensor

Frequency of Operation

Continuous

Duration

4 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

All of the following conditions are met

-

Starter

Off

Ignition switch

ON

Time after ignition switch off to ON

2 seconds or more

Auxiliary battery voltage

8 V or higher

Exhaust camshaft position sensor verify pulse input fail (P0365) (Pending / MIL)

Not detected

TYPICAL MALFUNCTION THRESHOLDS

Exhaust camshaft position sensor voltage

Less than 0.3 V

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON [A].
  7. Turn the GTS on.
  8. Wait for 5 seconds or more [B].
  9. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  10. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  12. Proceed to the next screen and enter the DTC to be checked.
  13. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

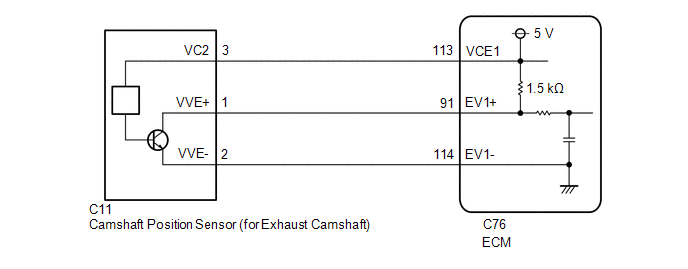

WIRING DIAGRAM

CAUTION / NOTICE / HINT

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

2.

CHECK DTC OUTPUT (DTC P036511 OR P036515)

HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.

(a) Disconnect the camshaft position sensor (for exhaust camshaft) connector.

(b) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

HINT:

When the ECM, wire harnesses and connectors are normal, DTC P036515 will be stored when the connector of the sensor is disconnected.

Result

Proceed to

DTC P036515 is output

A

DTC P036511 is output

B

A

REPLACE CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)

B

3.

CHECK HARNESS AND CONNECTOR (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) - ECM)

(a) Disconnect the camshaft position sensor (for exhaust camshaft) connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C11-1 (VVE+) or C76-91 (EV1+) - Body ground and other terminals

Always

10 kΩ or higher

C11-2 (VVE-) or C76-114 (EV1-) - Body ground and other terminals

Always

10 kΩ or higher

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
