Toyota Corolla Cross: Terminals Of Ecu

TERMINALS OF ECU

NOTICE:

  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Click here

  • When disconnecting and reconnecting the auxiliary battery.

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Click here

CHECK POWER DISTRIBUTION BOX ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

(a) Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.

Click here

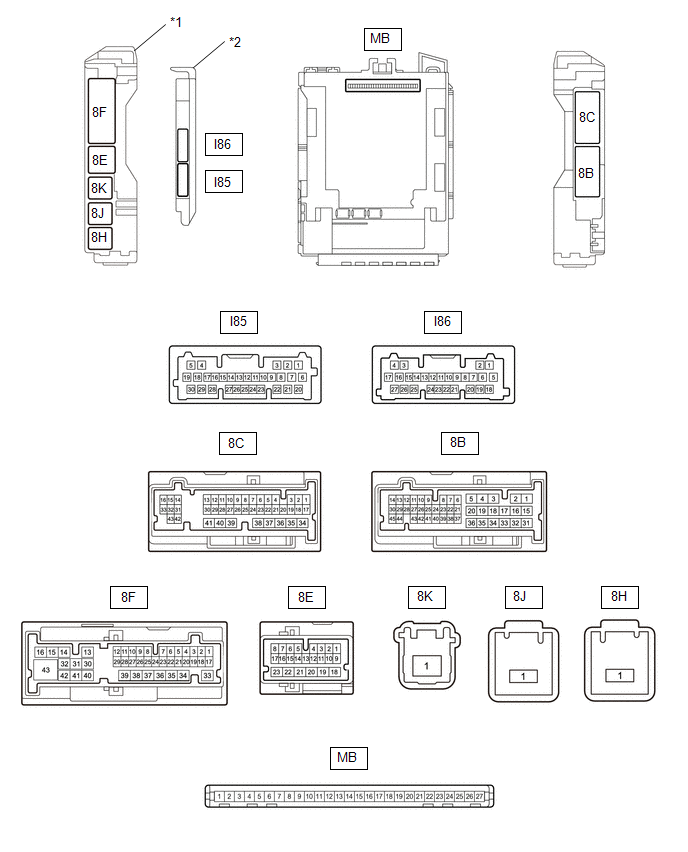

*1

Power Distribution Box Assembly

*2

Main Body ECU (Multiplex Network Body ECU)

(b) Connect the power distribution box assembly connectors.

Click here

(c) Measure the voltage and resistance according to the value(s) in the table below.

Terminal No. (Symbol)

Terminal Description

Switch Condition

Specified Condition

MB-13 (GND1) - Body ground

Ground

Always

Below 1 Ω

MB-14 (GND2) - Body ground

MB-26 (BECU) - Body ground

Auxiliary battery power supply

Ignition switch off

11 to 14 V

MB-27 (IGR) - Body ground

IG power supply

Ignition switch off

Below 1 V

Ignition switch ON

11 to 14 V

(d) Install the main body ECU (multiplex network body ECU).

Click here

(e) Measure the voltage and check for pulses according to the value(s) in the table below.

Terminal No. (Symbol)

Terminal Description

Switch Condition

Specified Condition

8E-5 - Body ground

CXPI communication line

Ignition switch ON

Pulse generation

8F-43 - Body ground

Rear window defogger signal (output)

Rear window defogger switch off

Below 1.5 V

Rear window defogger switch on

8 to 14 V

8B-2 - Body ground

Mirror heater drive signal (output)

Rear window defogger switch off

Below 1.5 V

Rear window defogger switch on

8 to 14 V
