Toyota Corolla Cross: Steering System

Precaution

PRECAUTION

HANDLING PRECAUTIONS FOR STEERING SYSTEM

(a) Care must be taken when replacing parts. Incorrect replacement may affect the performance of the steering system and result in a driving hazard.

HANDLING PRECAUTIONS FOR SRS AIRBAG SYSTEM

(a) This vehicle is equipped with a Supplemental Restraint System (SRS). Failure to carry out service operations in the correct sequence could cause the SRS to unexpectedly deploy during servicing. This may cause a serious accident. Before servicing (including inspection, replacement, removal, and installation of parts), be sure to read the precautionary notices for Supplemental Restraint System.

Click here

HANDLING PRECAUTIONS FOR STEERING COLUMN

(a) Do not release the tilt lever when the steering column assembly is not installed on the vehicle.

HANDLING PRECAUTION FOR SPIRAL CABLE

(a) Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the ignition switch ON.

(b) Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the ignition switch ON.

(c) Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

(d) Be sure that the spiral cable with sensor sub-assembly is in the center position during installation and when removing and installing the steering wheel assembly.

Click here

CAUTION:

If the steering wheel assembly is turned without the spiral cable with sensor sub-assembly installed in the center position, the cable may break.

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT STEERING WHEEL FREE PLAY

(a) Start the engine and make sure that the vehicle is in a state in which the power steering can operate.

(b) Stop the vehicle and align the front wheels facing straight ahead.

(c) Gently turn the steering wheel assembly right and left, and check for steering wheel assembly free play.

Maximum Free Play:

30 mm (1.18 in.)

Adjustment

ADJUSTMENT

PROCEDURE

1. STEERING OFF CENTER ADJUSTMENT

HINT:

This is the adjustment procedure for when the steering is off-center.

(a) Check if the steering wheel assembly is off-center.

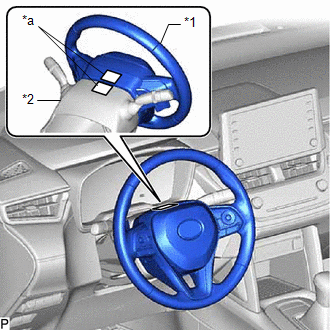

(1) Apply masking tape to the top center of the steering wheel assembly and upper steering column cover.

*1

Steering Wheel Assembly

*2

Upper Steering Column Cover

*a

Masking Tape

(2) Drive the vehicle in a straight line for 100 m (328 ft.) at a constant speed of 56 km/h (35 mph) and hold the steering wheel assembly to maintain the course.

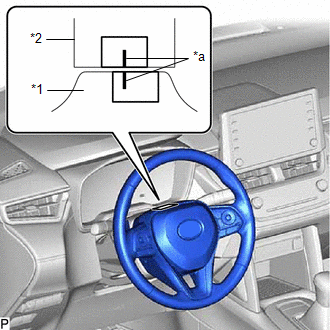

(3) Draw a line on the masking tape as shown in the illustration.

*1

Steering Wheel Assembly

*2

Upper Steering Column Cover

*a

Marked Line

(4) Turn the steering wheel assembly to the center position.

HINT:

Look at the upper surface of the steering wheel assembly, steering spoke and SRS airbag line to find the center position.

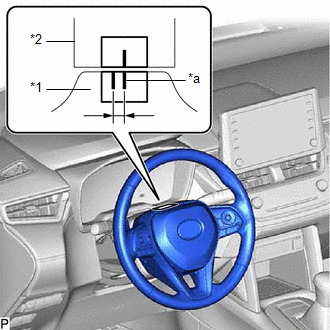

(5) Draw a new line on the masking tape on the steering wheel assembly as shown in the illustration.

*1

Steering Wheel Assembly

*2

Upper Steering Column Cover

*a

Marked Line

(6) Measure the distance between the 2 lines on the masking tape on the steering wheel assembly.

(7) Convert the measured distance to a steering angle value.

HINT:

  • Measured distance 1 mm (0.0394 in.) = Steering angle of approximately 1°.
  • Make a note of the steering angle.

(b) Adjust the steering angle.

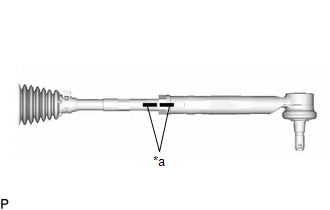

(1) Place matchmarks on the RH and LH tie rod end sub-assemblies and steering rack end sub-assemblies respectively where they can be easily seen.

*a

Matchmark

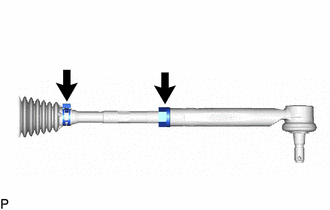

(2) Remove the RH and LH steering rack boot clips from the steering rack boots.

(3) Loosen the RH and LH lock nuts.

(4) Turn the RH and LH steering rack end sub-assemblies by the same amount (but in different directions) according to the steering angle value.

(5) Tighten the RH and LH lock nuts to the specified torque.

Click here

(6) Install the RH and LH steering rack boot clips.

Click here

(7) Perform rotation angle sensor output calibration.

Click here
