Toyota Corolla Cross: Roof Drip Side Finish Moulding

Removal

REMOVAL

CAUTION / NOTICE / HINT

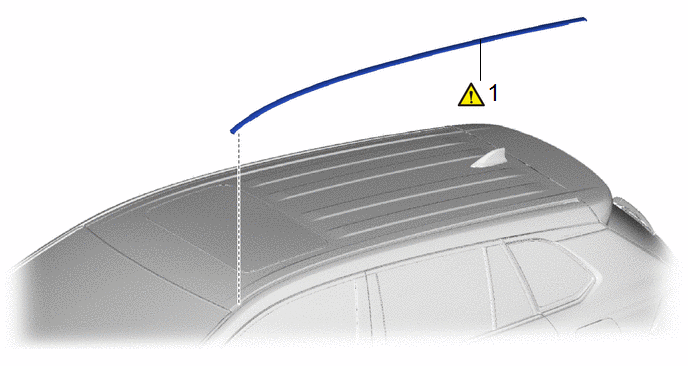

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CENTER ROOF DRIP SIDE FINISH MOULDING

75556C

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING

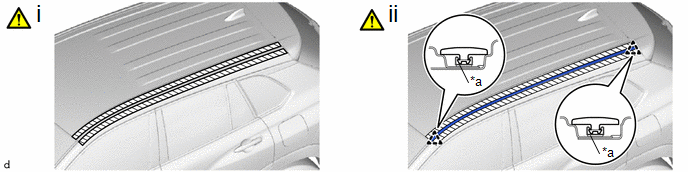

*a

ROOF DRIP SIDE FINISH MOULDING CRIP

-

-

(1) Apply protective tape around the center roof drip side finish moulding as shown in the illustration.

(2) Disengage the clips to remove the center roof drip side finish moulding.

NOTICE:

  • Do not remove the roof drip side finish moulding clips.
  • If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

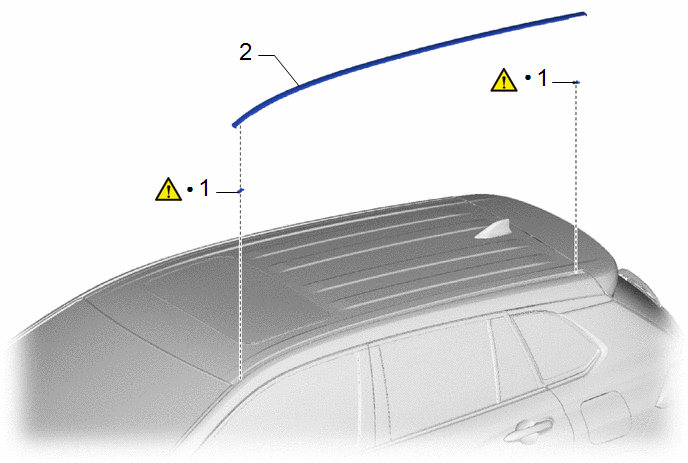

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

ROOF DRIP SIDE FINISH MOULDING CLIP

75561A

-

-

2

CENTER ROOF DRIP SIDE FINISH MOULDING

75556C

-

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL ROOF DRIP SIDE FINISH MOULDING CLIP

NOTICE:

When installing 2 new roof drip side finish moulding clips, remove any adhesive remaining where the roof drip side finish moulding clips will be installed on the vehicle body and clean the vehicle body with a non-residue solvent.

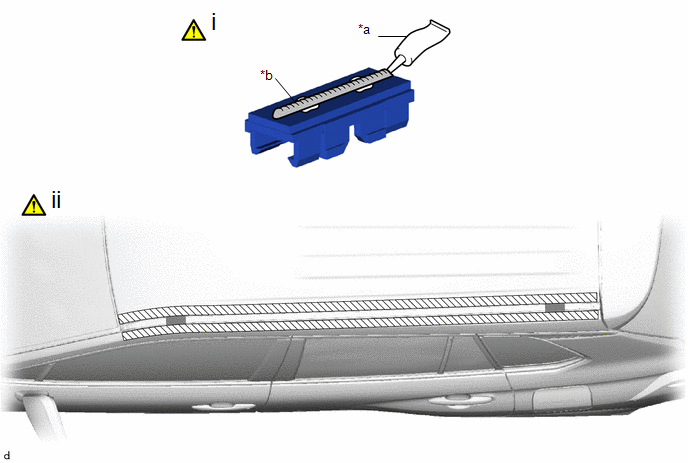

*a

Adhesive

*b

2.0 to 3.0 mm Bead of Adhesive

Primer Application

-

-

(1) Apply a 2.0 to 3.0 mm (0.0787 to 0.118 in.) bead of adhesive (3M DP-105 or equivalent) to 2 new roof drip side finish moulding clips as shown in the illustration.

HINT:

Adhesive strength (tensile strength): 13.7 Mpa (140.0 kgf/cm2, 1987 psi) or more (when the temperature is 23°C (73°F).)

(2) Apply primer to the vehicle body where the roof drip side finish moulding clip will be installed.

NOTICE:

Do not let the primer dry.

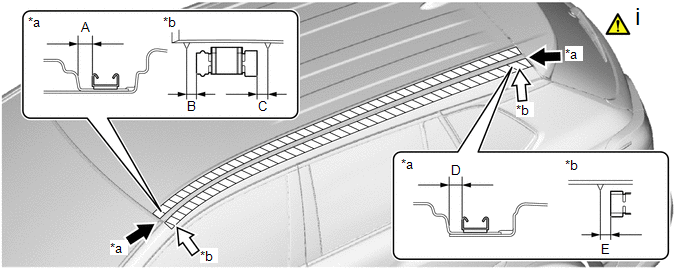

*a

View A

*b

View B

(1) Install the 2 roof drip side finish moulding clips to the positions on the roof panel shown in the illustration. Determine the locations and firmly press and install the 2 roof drip side finish moulding clips.

HINT:

  • Install the roof drip side finish moulding when 40 minutes or more have elapsed since the roof drip side finish moulding clips were installed.
  • Initial hardening time: 40 minutes
  • Complete hardening time: 24 hours

Standard Measurement:

Area

Measurement

Area

Measurement

A

5.7 to 6.7 mm (0.224 to 0.264 in.)

B

4.7 mm (0.185 in.)

C

5.1 mm (0.201 in.)

D

4.4 to 5.4 mm (0.173 to 0.213 in.)

E

4.5 to 5.5 mm (0.177 to 0.217 in.)

-

-

2. INSTALL CENTER ROOF DRIP SIDE FINISH MOULDING
