Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

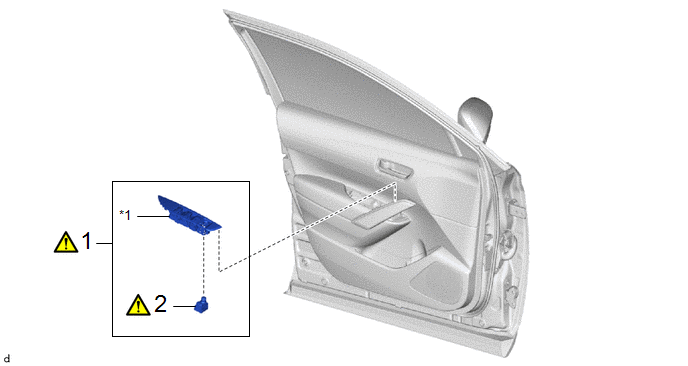

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

2

OUTER MIRROR SWITCH ASSEMBLY

84870A

-

-

*1

FRONT DOOR UPPER ARMREST BASE PANEL

-

-

PROCEDURE

1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click here

2. REMOVE OUTER MIRROR SWITCH ASSEMBLY

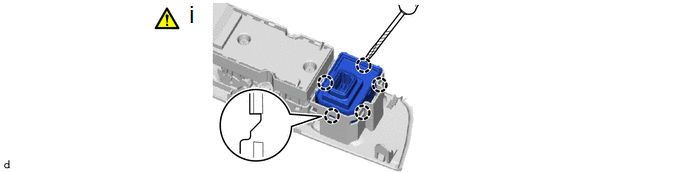

(1) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the outer mirror switch assembly.
