Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Mirror (ext) / Outer Mirror Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

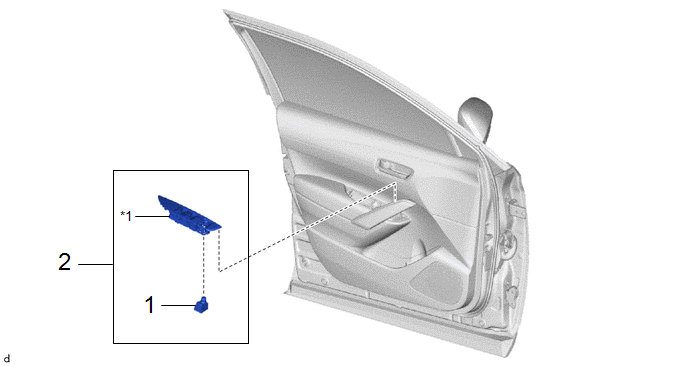

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

OUTER MIRROR SWITCH ASSEMBLY

84870A

-

-

-

2

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

-

*1

FRONT DOOR UPPER ARMREST BASE PANEL

-

-

PROCEDURE

1. INSTALL OUTER MIRROR SWITCH ASSEMBLY

2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
