Toyota Corolla Cross: Disassembly

Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Mirror (ext) / Outer Rear View Mirror / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

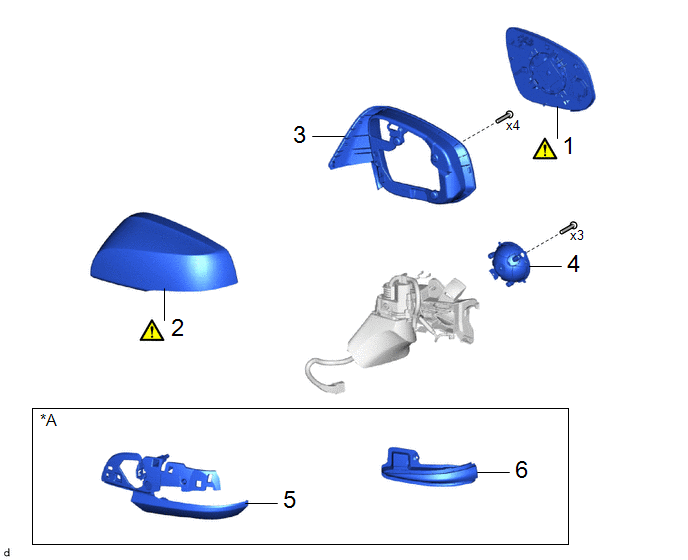

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

OUTER MIRROR

87961

-

-

2

OUTER MIRROR COVER

87945

-

-

3

OUTER MIRROR BEZEL

-

-

-

-

4

OUTER MIRROR ACTUATOR

-

-

-

-

5

OUTER MIRROR LOWER COVER

-

-

-

-

6

SIDE TURN SIGNAL LIGHT ASSEMBLY

81740

-

-

-

*A

w/ Side Turn Signal Light

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE OUTER MIRROR

Click here

2. REMOVE OUTER MIRROR COVER

Click here

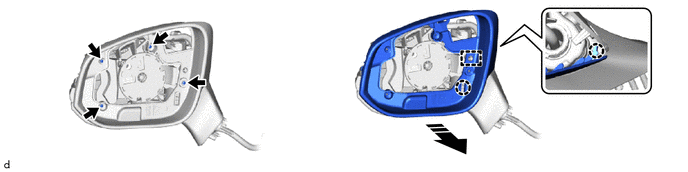

3. REMOVE OUTER MIRROR BEZEL

Remove in this Direction

-

-

4. REMOVE OUTER MIRROR ACTUATOR

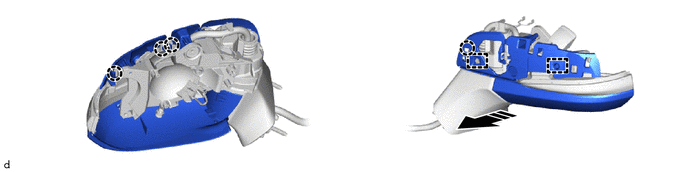

5. REMOVE OUTER MIRROR LOWER COVER (w/ Side Turn Signal Light)

Remove in this Direction

-

-

6. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY (w/ Side Turn Signal Light)

Click here
