Toyota Corolla Cross (2022-2026) Service Manual / Power Source & Network / Networking / Lin Communication System / Parts Location

PARTS LOCATION

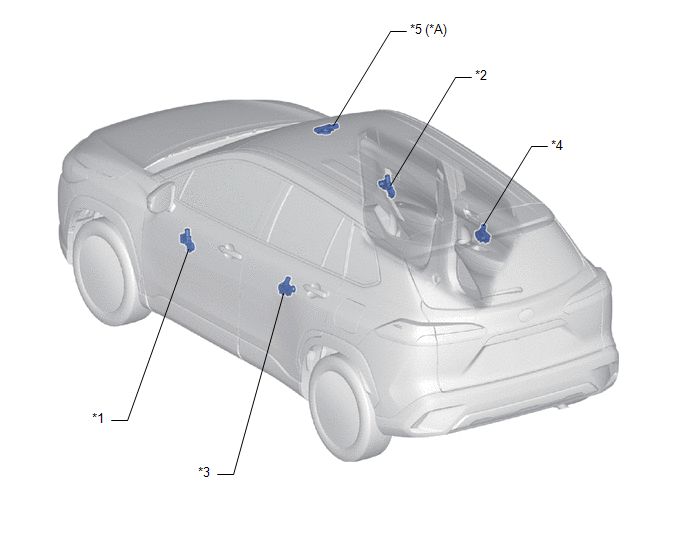

ILLUSTRATION

*A

w/ Sliding Roof System

-

-

*1

FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER DOOR)

*2

FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT PASSENGER DOOR)

*3

REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR LH DOOR)

*4

REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH DOOR)

*5

SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY)

-

-

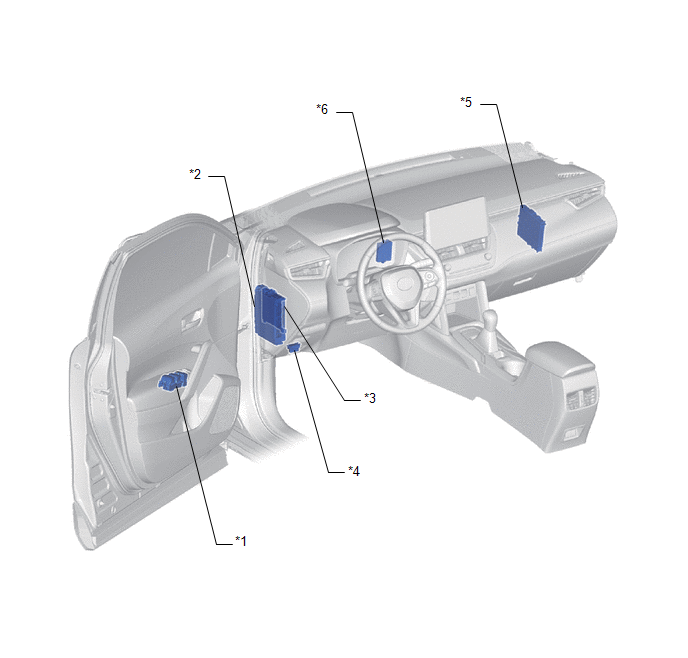

ILLUSTRATION

*1

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

*2

POWER DISTRIBUTION BOX ASSEMBLY

- DOOR F/R FUSE

- DOOR F/L FUSE

- DOOR R/L FUSE

- DOOR R/R FUSE

- S/ROOF FUSE (w/ Sliding Roof System)

- ECU-B NO. 1 FUSE

- ECU-B NO. 2 FUSE

*3

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*4

DLC3

*5

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

*6

ID CODE BOX (IMMOBILISER CODE ECU)
