Toyota Corolla Cross: Reassembly

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Mirror (ext) / Outer Rear View Mirror / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

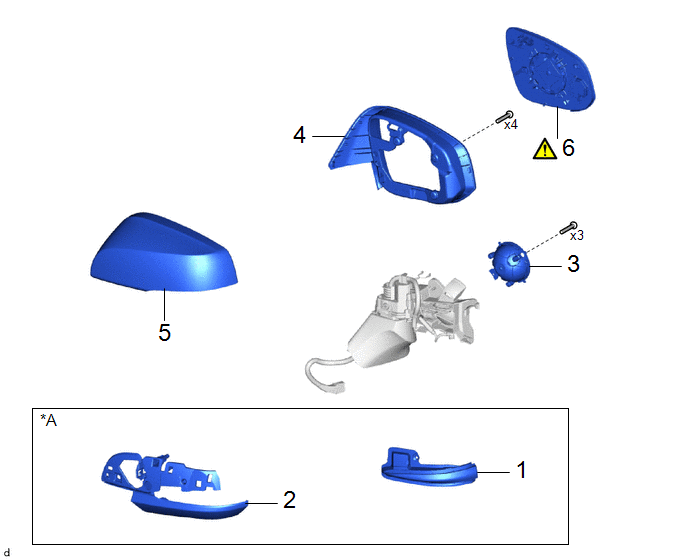

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

SIDE TURN SIGNAL LIGHT ASSEMBLY

81740

-

-

-

2

OUTER MIRROR LOWER COVER

-

-

-

-

3

OUTER MIRROR ACTUATOR

-

-

-

-

4

OUTER MIRROR BEZEL

-

-

-

-

5

OUTER MIRROR COVER

87945

-

-

-

6

OUTER MIRROR

87961

-

-

*A

w/ Side Turn Signal Light

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY (w/ Side Turn Signal Light)

2. INSTALL OUTER MIRROR LOWER COVER (w/ Side Turn Signal Light)

3. INSTALL OUTER MIRROR ACTUATOR

4. INSTALL OUTER MIRROR BEZEL

5. INSTALL OUTER MIRROR COVER

6. INSTALL OUTER MIRROR

Click here
