Toyota Corolla Cross: Outer Rear View Mirror Cover

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Mirror (ext) / Outer Rear View Mirror Cover

Removal

REMOVAL

CAUTION / NOTICE / HINT

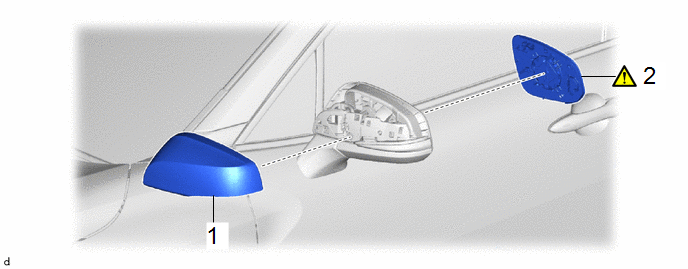

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

OUTER MIRROR

87961

-

-

2

OUTER MIRROR COVER

87945

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE OUTER MIRROR

Click here

2. REMOVE OUTER MIRROR COVER

Place Hands Here

Remove in this Direction

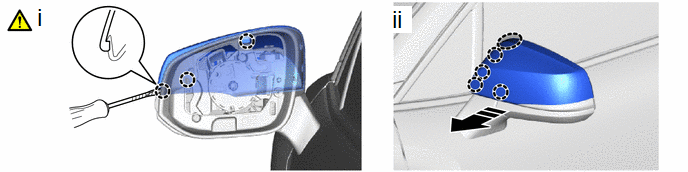

(1) Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.

(2) Disengage the claws to remove the outer mirror cover as shown in the illustration.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

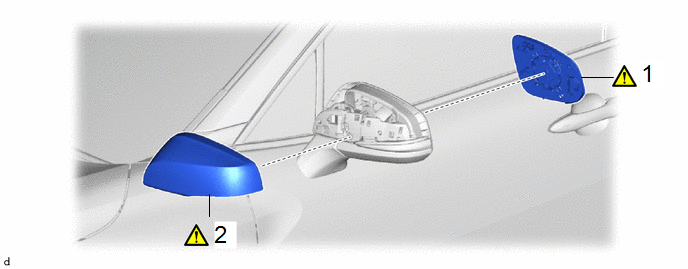

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

OUTER MIRROR COVER

87945

-

-

-

2

OUTER MIRROR

87961

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL OUTER MIRROR COVER

2. INSTALL OUTER MIRROR

Click here
