Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

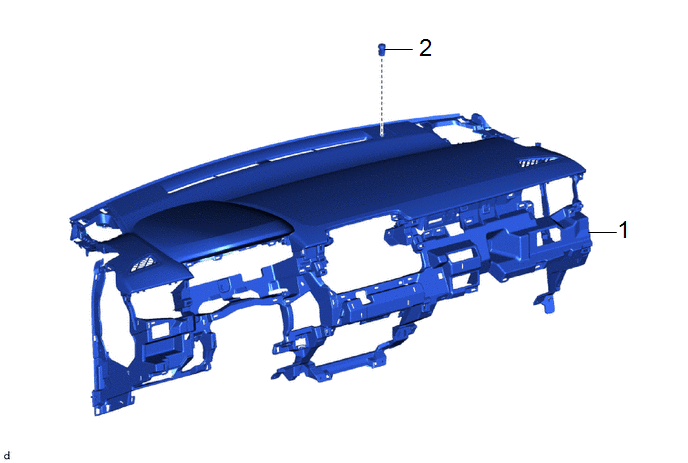

Procedure		Part Name Code
1	INSTRUMENT PANEL SAFETY PAD ASSEMBLY	55400	-	-	-
2	AUTOMATIC LIGHT CONTROL SENSOR	89120A	-	-	-

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

• Learning completes when vehicle is driven

  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  *1: for Gasoline Model
  Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
  Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

• Learning completes when vehicle is operated normally

  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  Power door lock control system Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
  Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.
  Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click here

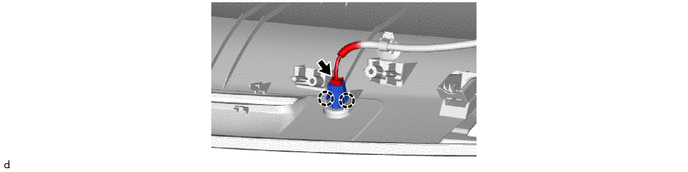

2. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
