Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

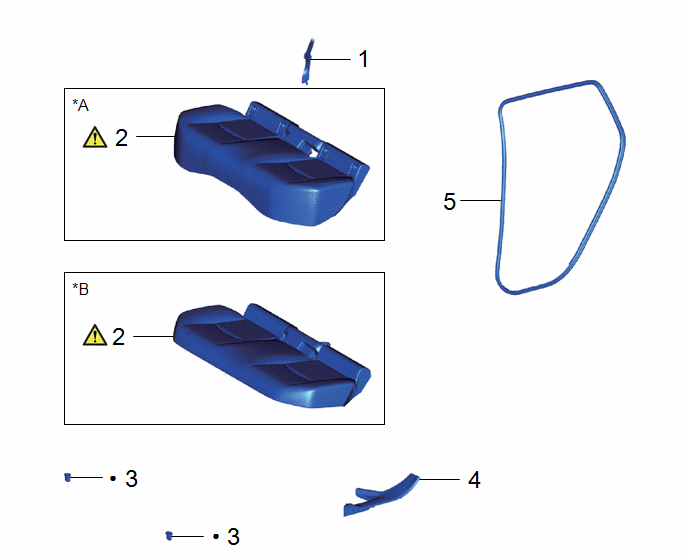

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR CENTER SEAT OUTER BELT ASSEMBLY

73350C

-

-

-

2

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

-

-

-

3

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

4

REAR DOOR SCUFF PLATE

67918A

-

-

-

5

REAR DOOR OPENING TRIM WEATHERSTRIP

62332C

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Click here

2. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

  • for Gasoline Model:

    Click here

  • for HEV Model:

    Click here

3. REMOVE REAR SEAT CUSHION LOCK HOOK

Click here

4. REMOVE REAR DOOR SCUFF PLATE

Click here

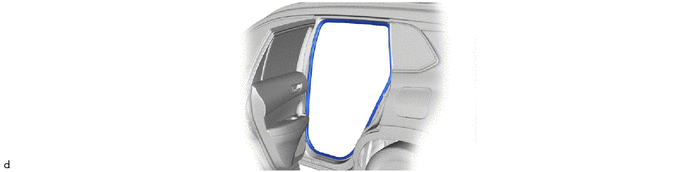

5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
