Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

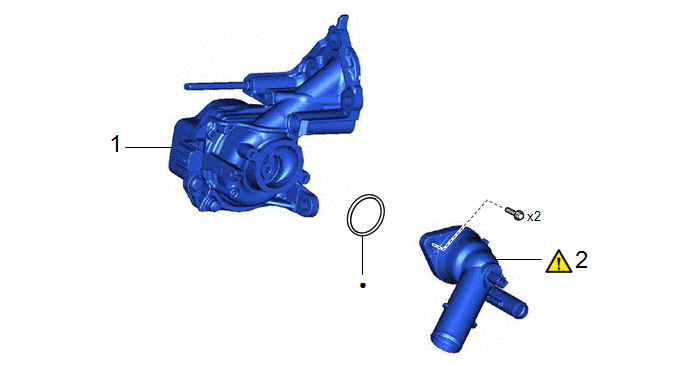

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

16032

-

-

-

2

WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

16031

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during water inlet with thermostat sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

  • Replacement of throttle body with motor assembly
  • Cleaning the deposits from the throttle body with motor assembly

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

Click here

2. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

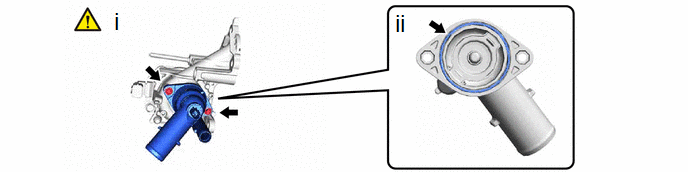

(1) Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.

(2) Remove the gasket from the water inlet with thermostat sub-assembly.
