INSPECTION
PROCEDURE
1. INSPECT SHIFT STROKE SENSOR
(a) Connect 3 new dry-cell batteries (1.5 V each) in series.
(b) Prepare a magnet or equivalent tool.
(c) Connect a positive (+) lead from the batteries to terminal 2 (VDD) and a negative (-) lead to terminal 3 (GND).
|

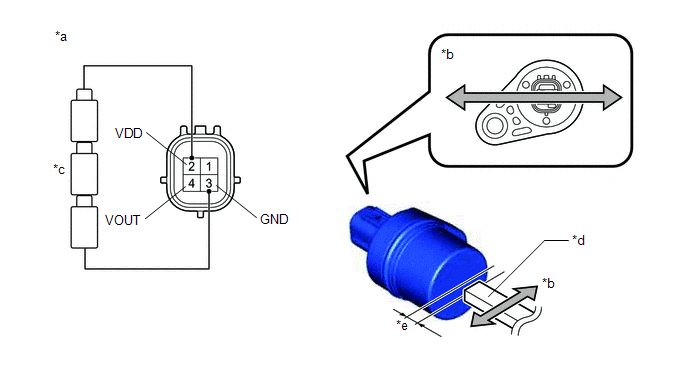

*a |
Component without harness connected (Shift Stroke Sensor) |
*b |
Magnet Movement Direction |
|
*c |
Dry Cell Battery |
*d |
Magnet |
|
*e |
2.6 mm (0.102 in.) or less |
- |
- |
(d) Wave the magnet left and right 2.6 mm (0.102 in.) or less from the tip of the shift stroke sensor to output a high/low signal while measuring the voltage.
(e) Measure the voltage according to the value(s) in the table below.
Standard Voltage (Combined Dry-cell Battery Voltage of 4.5 V):
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
4 (VOUT) - 3 (GND) |
High voltage |
4.09 to 4.19 V |
|
Low voltage |
0.36 to 0.45 V |
Reference Voltage (Combined Dry-cell Battery Voltage of 5.0 V):
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
4 (VOUT) - 3 (GND) |
High voltage |
4.55 to 4.65 V |
|
Low voltage |
0.4 to 0.5 V |
(f) If the result is not as specified, replace the shift stroke sensor.
