Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

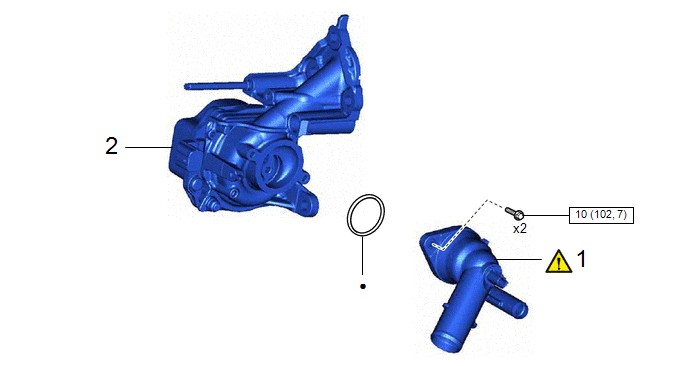

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

16031

-

-

2

ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

16032

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

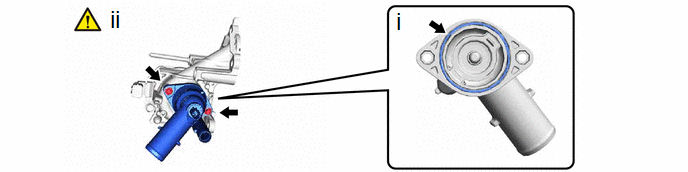

(1) Install a new gasket to the water inlet with thermostat sub-assembly.

(2) Using an 8 mm socket wrench, install the water inlet with thermostat sub-assembly with the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

2. INSTALL ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

Click here
