Toyota Corolla Cross: Engine compartment

Toyota Corolla Cross (2022-2025) Owner's Manual / Maintenance and care / Do-it-yourself maintenance / Engine compartment

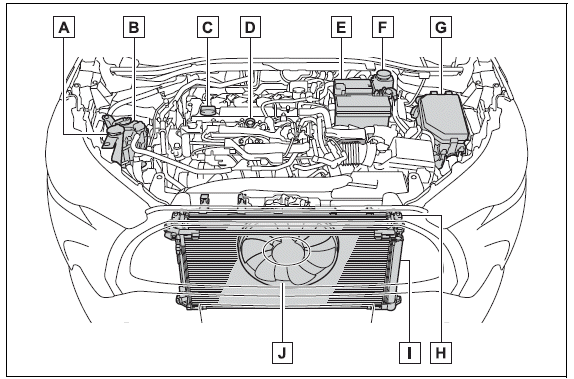

Components

Do-it-yourself maintenance

  1. Washer fluid tank
  2. Engine coolant reservoir
  3. Engine oil filler cap
  4. Engine oil level dipstick
  5. Battery
  6. Brake fluid reservoir
  7. Fuse boxes
  8. Radiator
  9. Condenser
  10. Electric cooling fan

Checking and adding the engine oil

With the engine at operating temperature and turned off, check the oil level on the dipstick.

■ Checking the engine oil

1. Park the vehicle on level ground. After warming up the engine and turning it off, wait more than 5 minutes for the oil to drain back into the bottom of the engine.

2. Holding a rag under the end, pull the dipstick out.

Do-it-yourself maintenance

3. Wipe the dipstick clean.

4. Reinsert the dipstick fully.

5. Holding a rag under the end, pull the dipstick out and check the oil level.

Do-it-yourself maintenance

  1. Low
  2. Normal
  3. Excessive

The shape of the dipstick may differ depending on the type of vehicle or engine.

6. Wipe the dipstick and reinsert it fully.
