Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2026) Service Manual / Engine & Hybrid System / M20a-fks (cooling) / Radiator / Removal

REMOVAL

CAUTION / NOTICE / HINT

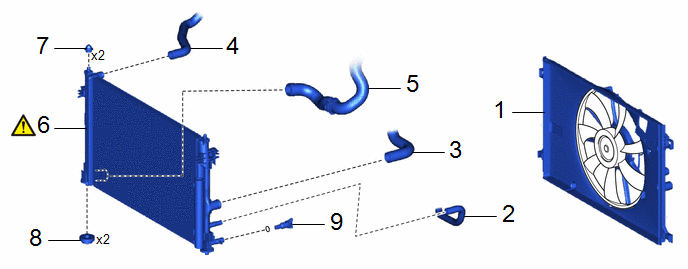

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FAN WITH MOTOR ASSEMBLY

-

-

-

-

2

NO. 2 WATER BY-PASS HOSE

16264D

-

-

-

3

NO. 1 RADIATOR HOSE

16571C

-

-

-

4

NO. 1 WATER BY-PASS HOSE

16261G

-

-

-

5

NO. 2 RADIATOR HOSE

16572D

-

-

-

6

RADIATOR ASSEMBLY

16400

-

-

7

RADIATOR SUPPORT CUSHION

16523A

-

-

-

8

RADIATOR SUPPORT LOWER

16535

-

-

-

9

RADIATOR DRAIN COCK PLUG

16400B

-

-

-

PROCEDURE

1. REMOVE FAN WITH MOTOR ASSEMBLY

Click here

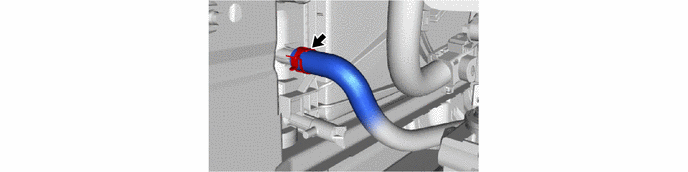

2. DISCONNECT NO. 2 WATER BY-PASS HOSE

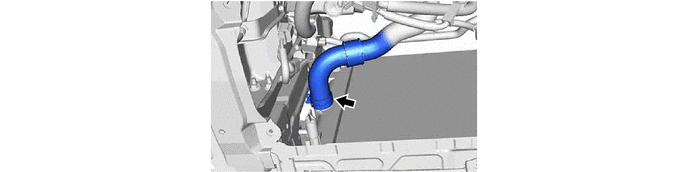

3. DISCONNECT NO. 1 RADIATOR HOSE

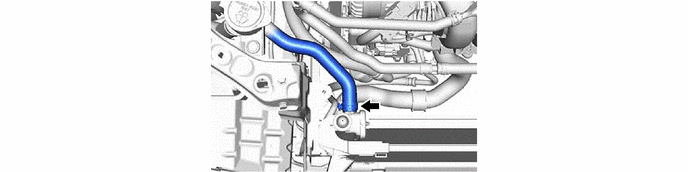

4. DISCONNECT NO. 1 WATER BY-PASS HOSE

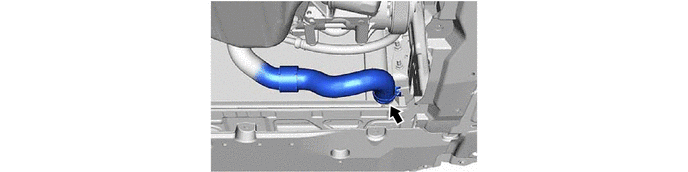

5. DISCONNECT NO. 2 RADIATOR HOSE

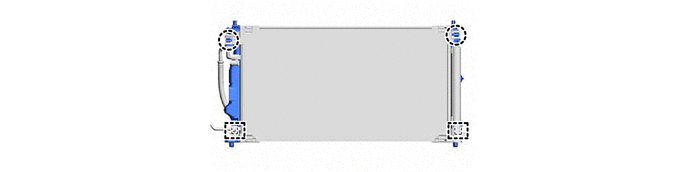

6. REMOVE RADIATOR ASSEMBLY

NOTICE:

  • Make sure not to damage the cooler condenser assembly when separating the cooler condenser assembly.
  • Do not apply excessive force to the cooler condenser assembly or pipe when removing the radiator assembly.

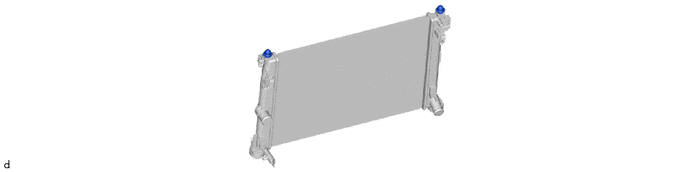

7. REMOVE RADIATOR SUPPORT CUSHION

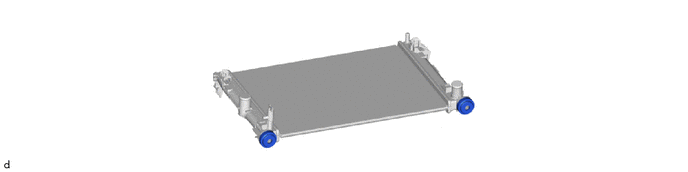

8. REMOVE RADIATOR SUPPORT LOWER

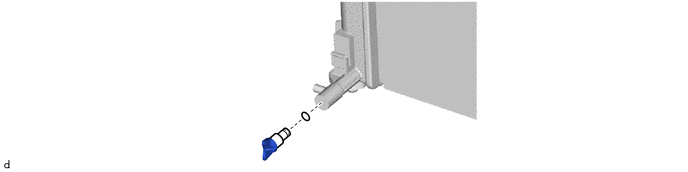

9. REMOVE RADIATOR DRAIN COCK PLUG
