Toyota Corolla Cross: Relay

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

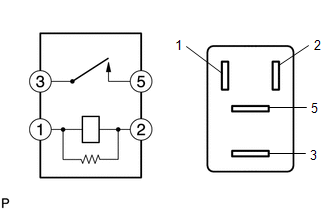

1. INSPECT FAN MAIN RELAY

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

3 - 5

Battery voltage applied between terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the FAN MAIN relay.

2. INSPECT EFI MAIN NO. 1 RELAY

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

3 - 5

Battery voltage applied between terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the EFI-MAIN No.1 relay.
