Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fks (cooling) / Radiator / Installation

INSTALLATION

CAUTION / NOTICE / HINT

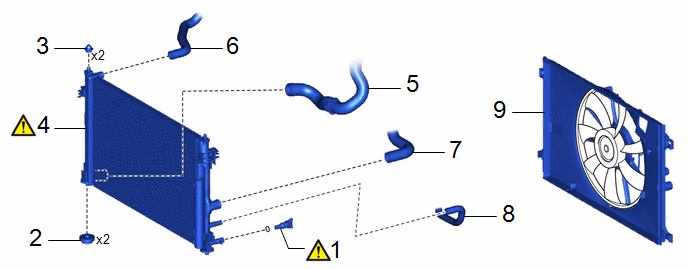

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

RADIATOR DRAIN COCK PLUG

16400B

-

-

2

RADIATOR SUPPORT LOWER

16535

-

-

-

3

RADIATOR SUPPORT CUSHION

16523A

-

-

-

4

RADIATOR ASSEMBLY

16400

-

-

5

NO. 2 RADIATOR HOSE

16572D

-

-

-

6

NO. 1 WATER BY-PASS HOSE

16261G

-

-

-

7

NO. 1 RADIATOR HOSE

16571C

-

-

-

8

NO. 2 WATER BY-PASS HOSE

16264D

-

-

-

9

FAN WITH MOTOR ASSEMBLY

-

-

-

-

PROCEDURE

1. INSTALL RADIATOR DRAIN COCK PLUG

NOTICE:

Replace the O-ring if it is damaged.

2. INSTALL RADIATOR SUPPORT LOWER

3. INSTALL RADIATOR SUPPORT CUSHION

4. INSTALL RADIATOR ASSEMBLY

NOTICE:

  • Do not apply excessive force to the cooler condenser assembly or pipe when installing the radiator assembly.
  • Do not damage the cooler condenser assembly when installing the cooler condenser assembly.

5. CONNECT NO. 2 RADIATOR HOSE

6. CONNECT NO. 1 WATER BY-PASS HOSE

7. CONNECT NO. 1 RADIATOR HOSE

8. CONNECT NO. 2 WATER BY-PASS HOSE

9. INSTALL FAN WITH MOTOR ASSEMBLY

Click here
