Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2026) Service Manual / Drivetrain / Pb10 (hybrid Transmission / Transaxle) / Shift Lever / Removal

REMOVAL

CAUTION / NOTICE / HINT

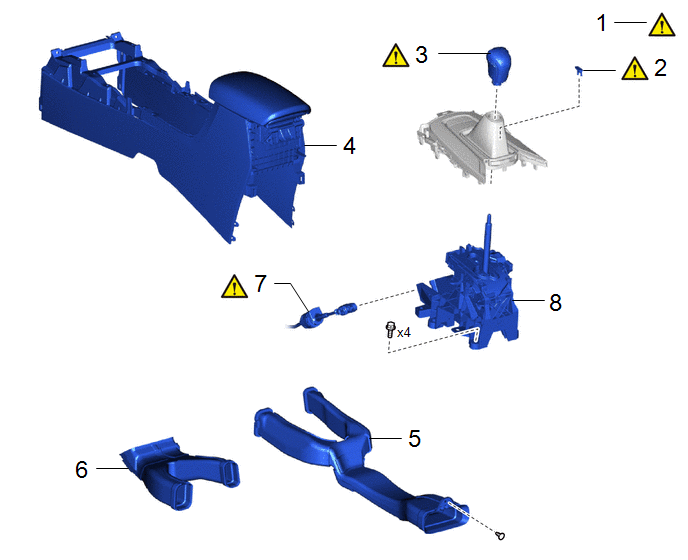

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

SECURE VEHICLE

-

-

-

2

SHIFT LOCK RELEASE BUTTON COVER

33554C

-

-

3

SHIFT LEVER KNOB SUB-ASSEMBLY

33504F

-

-

4

CONSOLE BOX ASSEMBLY

58810J

-

-

-

5

NO. 2 CONSOLE BOX DUCT

58862B

-

-

-

6

NO. 1 CONSOLE BOX DUCT

58861B

-

-

-

7

TRANSMISSION CONTROL CABLE ASSEMBLY

33820B

-

-

8

TRANSMISSION FLOOR SHIFT ASSEMBLY

-

-

-

-

PROCEDURE

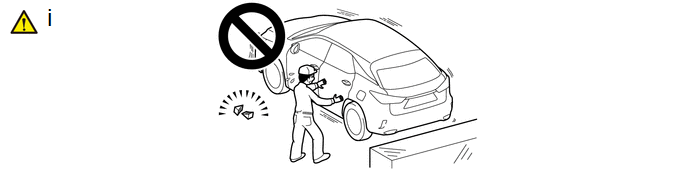

1. SECURE VEHICLE

(1) Fully apply the parking brake and chock a wheel.

CAUTION:

  • Make sure to apply the parking brake and chock a wheel before performing this procedure.
  • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

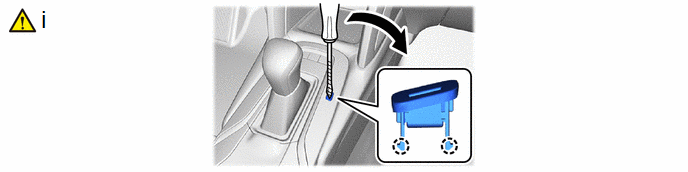

2. REMOVE SHIFT LOCK RELEASE BUTTON COVER

NOTICE:

Be careful not to damage the shift lock release button cover and position indicator housing assembly.

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

4. REMOVE CONSOLE BOX ASSEMBLY

Click here

5. REMOVE NO. 2 CONSOLE BOX DUCT

Click here

6. REMOVE NO. 1 CONSOLE BOX DUCT

Click here

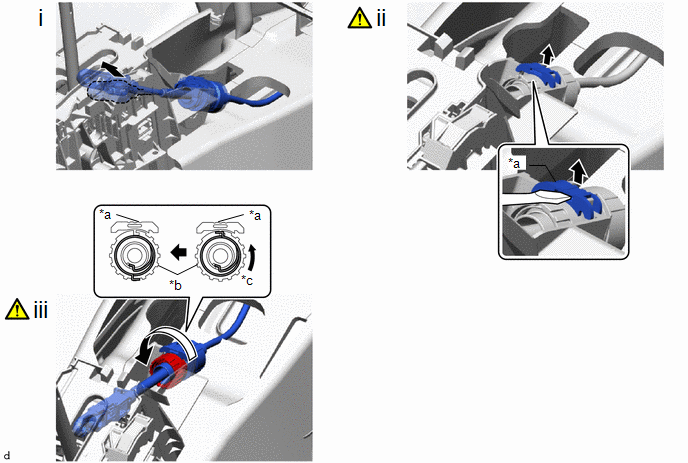

7. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

*a

Stopper

*b

Nut

*c

Turn approximately 180°

-

-

(1) Disconnect the end of the transmission control cable assembly from the transmission floor shift assembly.

(2) Using a screwdriver, pull out the stopper of the transmission control cable assembly.

NOTICE:

Do not remove the stopper. If it is removed, reinstall it to its original position.

(3) Rotate the nut of the transmission control cable assembly approximately 180° counterclockwise and, while holding the nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

NOTICE:

  • Do not turn the nut excessively as the internal spring may come off and the transmission control cable assembly will not be reusable.
  • Do not forcibly pull the transmission control select cable assembly into the cabin.

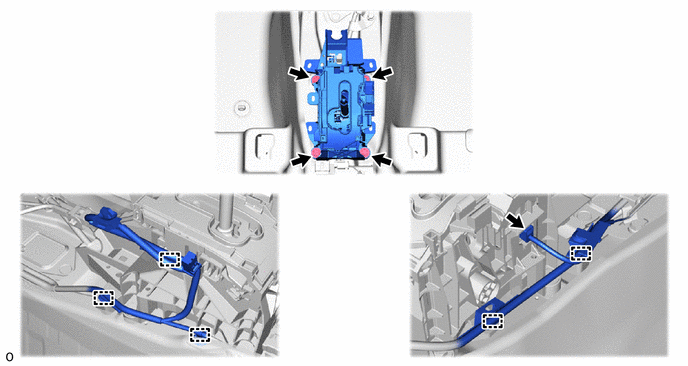

8. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
