Toyota Corolla Cross: Reassembly

Toyota Corolla Cross (2022-2026) Service Manual / Drivetrain / Pb10 (hybrid Transmission / Transaxle) / Shift Lever / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

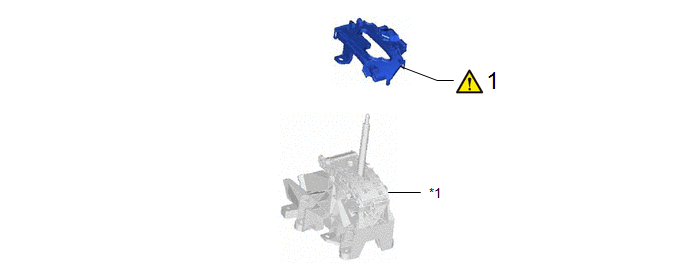

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

33507

-

-

*1

SHIFT LOCK CONTROL UNIT ASSEMBLY

-

-

PROCEDURE

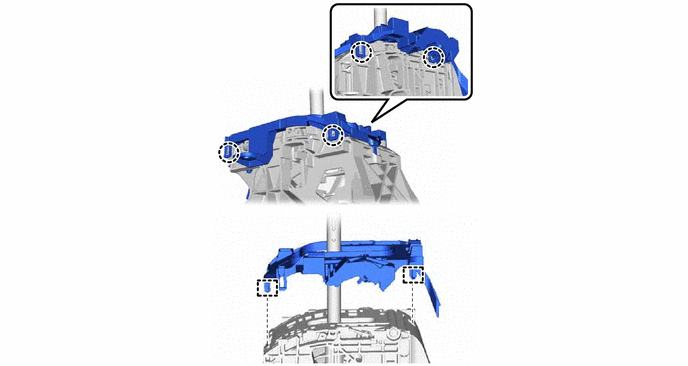

1. INSTALL SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

NOTICE:

Do not damage the shift lever housing bracket sub-assembly.
