Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / Pb10 (hybrid Transmission / Transaxle) / Shift Lever / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

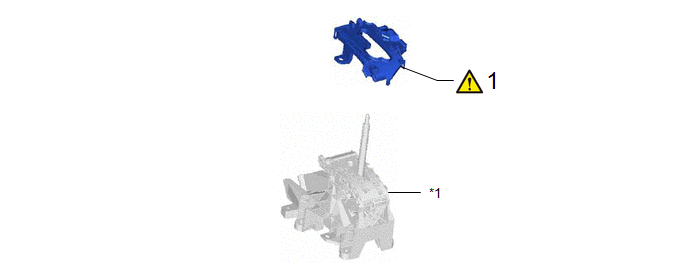

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

33507

-

-

*1

SHIFT LOCK CONTROL UNIT ASSEMBLY

-

-

PROCEDURE

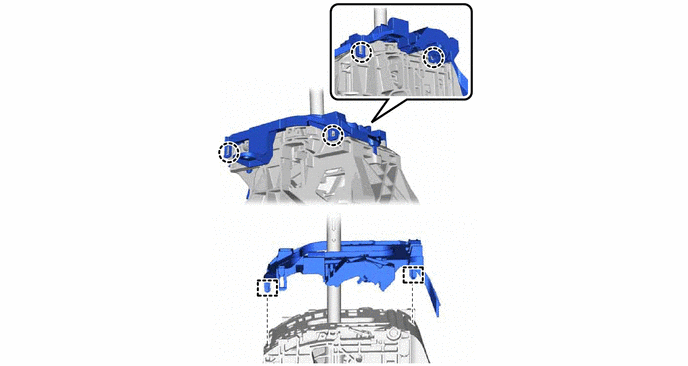

1. REMOVE SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

NOTICE:

Do not damage the shift lever housing bracket sub-assembly.
