Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

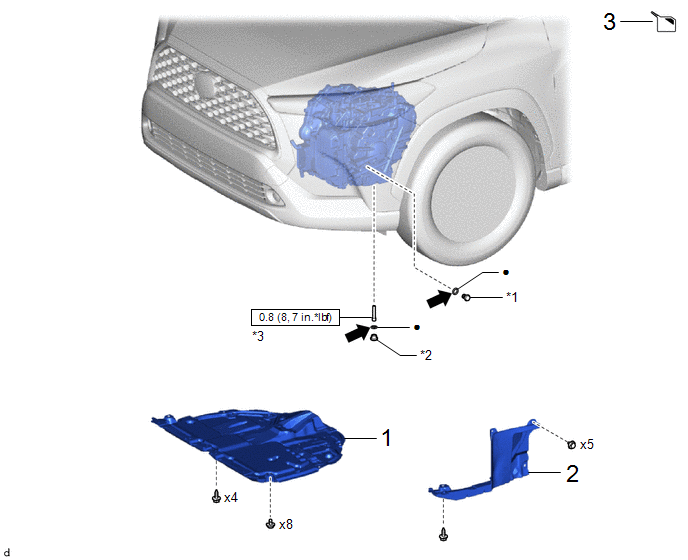

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

2

REAR ENGINE UNDER COVER LH

51444A

-

-

-

3

DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

-

-

-

*1

REFILL PLUG

*2

OVERFLOW PLUG

*3

OVERFLOW (CVT) TUBE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Procedure

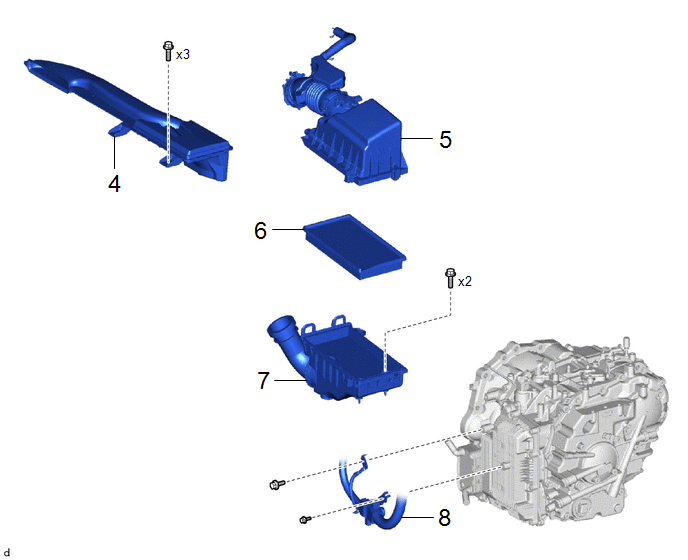

Part Name Code

4

INLET NO. 1 AIR CLEANER

17751

-

-

-

5

AIR CLEANER CAP WITH AIR CLEANER HOSE

-

-

-

-

6

AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

17801

-

-

-

7

AIR CLEANER CASE SUB-ASSEMBLY

17701

-

-

-

8

ENGINE WIRE

82121

-

-

-

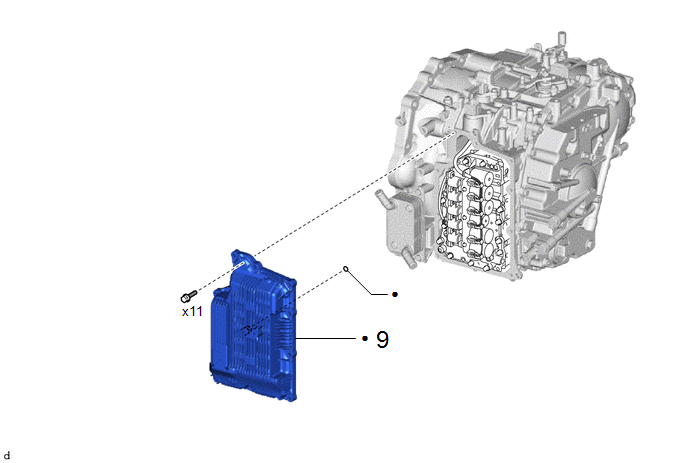

Procedure

Part Name Code

9

TRANSAXLE SIDE COVER SUB-ASSEMBLY

35015Y

-

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transaxle side cover sub-assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replacement Part or Procedure

Necessary Procedures

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

CVT fluid

ATF thermal degradation estimate reset

The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly

Bleed air from oil pump (continuously variable transaxle assembly)

Stop and start system

PROCEDURE

1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

2. REMOVE REAR ENGINE UNDER COVER LH

Click here

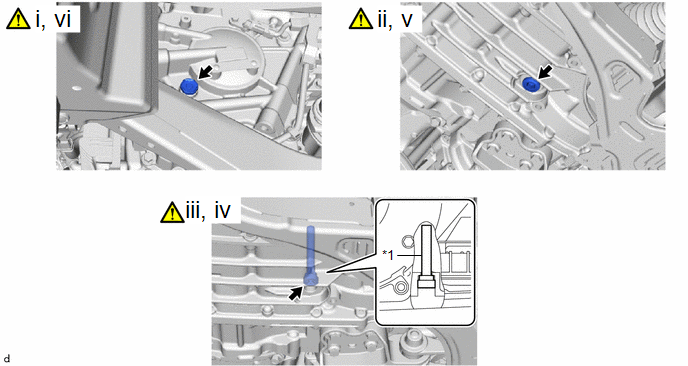

3. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

*1

Overflow (CVT) Tube

-

-

(1) Remove the refill plug and gasket from the rear transaxle case sub-assembly.

(2) Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle case sub-assembly, and drain the fluid.

(3) Using a 6 mm hexagon socket wrench, remove the overflow (CVT) tube from the transaxle case sub-assembly.

HINT:

Removing the overflow (CVT) tube will drain all fluid in the transaxle case sub-assembly.

(4) Using a 6 mm hexagon socket wrench, install the overflow (CVT) tube to the transaxle case sub-assembly.

Torque:

0.8 N·m {8 kgf·cm, 7 in·lbf}

(5) Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle case sub-assembly.

HINT:

Reuse the old gasket as the overflow plug will be removed again to adjust the fluid level.

(6) Temporarily install the gasket and refill plug to the rear transaxle case sub-assembly.

HINT:

Reuse the old gasket as the refill plug will be removed again to adjust the fluid level.

4. REMOVE INLET NO. 1 AIR CLEANER

Click here

5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click here

6. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

Click here

7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

Click here

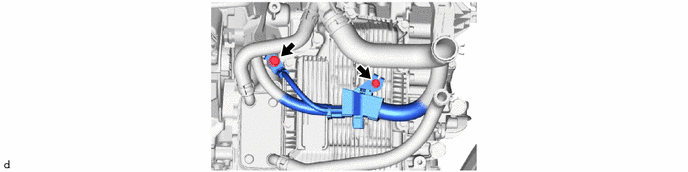

8. DISCONNECT ENGINE WIRE

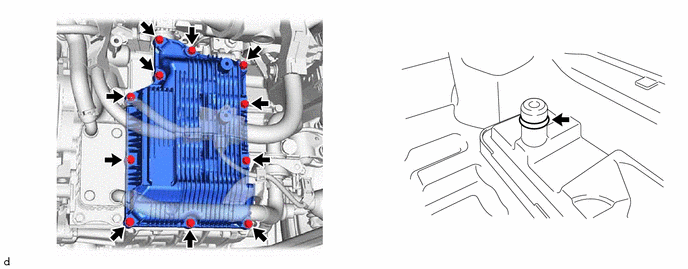

9. REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY
