Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

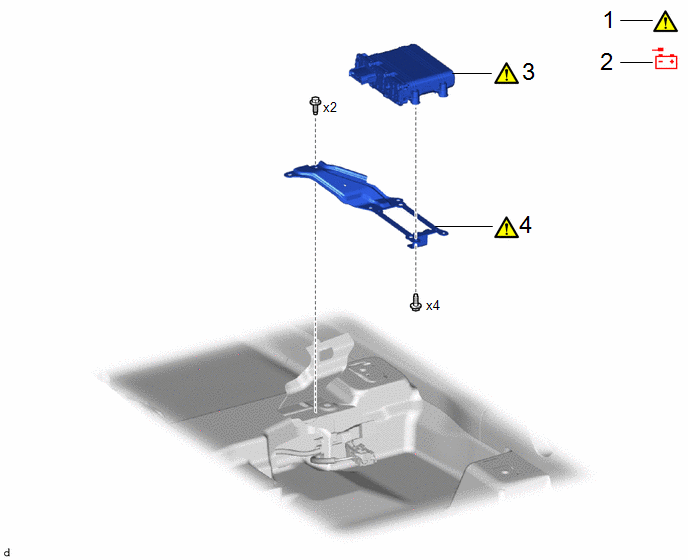

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

3

BRAKE CONTROL POWER SUPPLY ASSEMBLY

89680

-

-

4

NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

89686A

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the brake control power supply assembly removal/installation are shown below.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

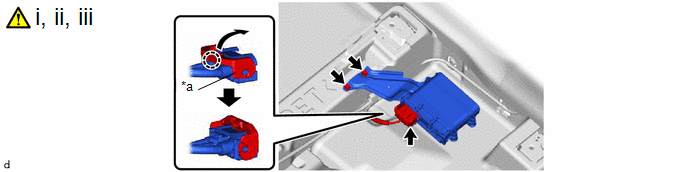

3. REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY

NOTICE:

  • Do not hold the brake control power supply assembly by the connector.
  • Do not drop the brake control power supply assembly when carrying it.

*a

Lock Lever

-

-

(1) Turn back the floor carpet.

(2) Remove the 2 bolts and remove the brake control power supply assembly.

(3) Disengage the claw and raise the lock lever to disconnect the brake control power supply assembly connector as shown in the illustration.

NOTICE:

After disconnecting the brake control power supply assembly connector, make sure that dirt, water or other foreign matter does not contact the connecting parts of the brake control power supply assembly connector.

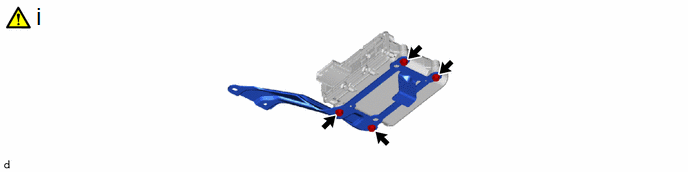

4. REMOVE NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

NOTICE:

  • Do not hold the brake control power supply assembly by the connector.
  • Do not drop the brake control power supply assembly when carrying it.

(1) Remove the 4 bolts and No. 1 brake control power supply bracket.
