Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

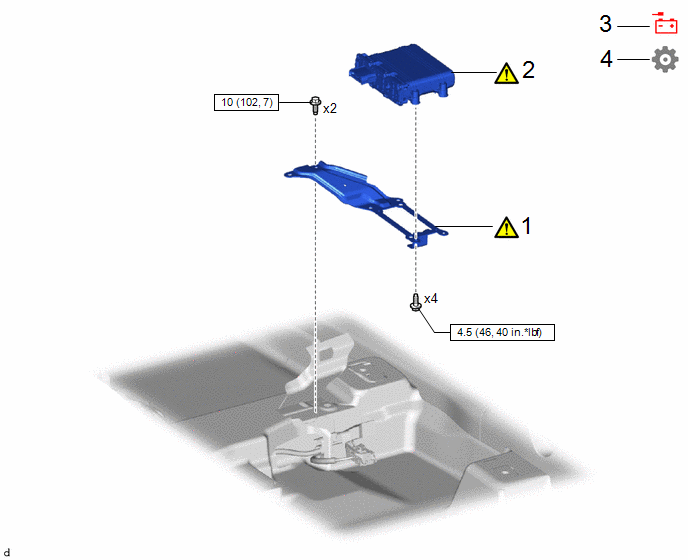

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

89686A

-

-

2

BRAKE CONTROL POWER SUPPLY ASSEMBLY

89680

-

-

3

CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

4

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

NOTICE:

  • Do not drop the brake control power supply assembly. If it is dropped, replace it with a new one.
  • Do not hold the brake control power supply assembly by the connector.

*a

Protrusion

-

-

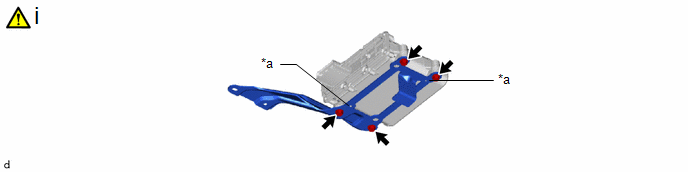

(1) Install the No. 1 brake control power supply bracket with 4 bolts.

Torque:

4.5 N·m {46 kgf·cm, 40 in·lbf}

NOTICE:

Align the hole on the No. 1 brake control power supply bracket with the protrusion of the brake control power supply assembly.

2. INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY

NOTICE:

  • Do not hold the brake control power supply assembly by the connector.
  • Do not drop the brake control power supply assembly when carrying it.

*a

Lock lever

-

-

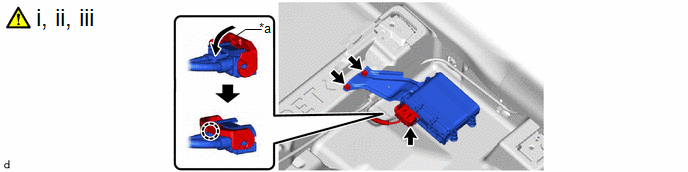

(1) Connect the brake control power supply assembly connector and push down the lock lever to engage the claw as shown in the illustration.

NOTICE:

  • When connecting the brake control power supply assembly connector, make sure that the connecting parts of the brake control power supply assembly connector are free of dirt, water or other foreign matter.
  • Be sure to securely connect the brake control power supply assembly connector.

(2) Install the brake control power supply assembly with the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

(3) Install the floor carpet.

3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
