Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Audio / Video / Front Door Speaker / Removal

REMOVAL

CAUTION / NOTICE / HINT

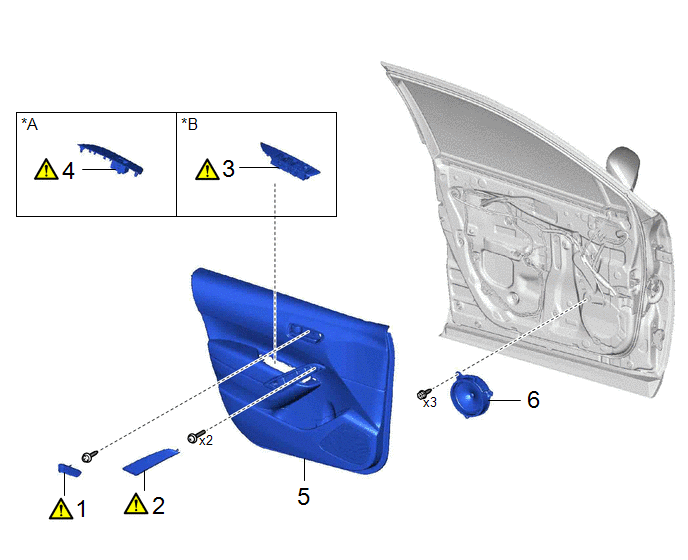

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT DOOR INSIDE HANDLE BEZEL PLUG

69284F

-

-

2

DOOR ASSIST GRIP COVER

74646

-

-

3

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

4

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

5

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

67602

-

-

-

6

FRONT NO. 1 SPEAKER ASSEMBLY

86160

-

-

-

*A

for Front Passenger Side

*B

for Driver Side

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

Click here

2. REMOVE DOOR ASSIST GRIP COVER

Click here

3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click here

4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click here

5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

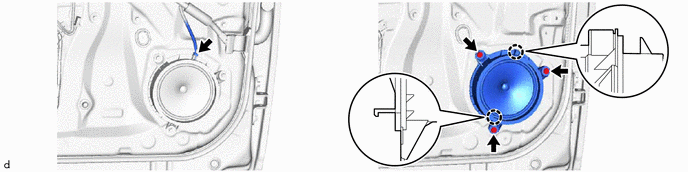

6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
