Toyota Corolla Cross (2022-2025) Service Manual / ADAS & AD / Advanced Driver Assistance System / Millimeter Wave Radar Sensor / Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during millimeter wave radar sensor assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Millimeter wave radar sensor assembly

Adjust millimeter wave radar sensor assembly
  • Front Camera System
  • Front Radar Sensor System
  • Automatic High Beam System

Triangle Target:

Flat Surface Target:

Driving Adjustment:

CAUTION / NOTICE / HINT

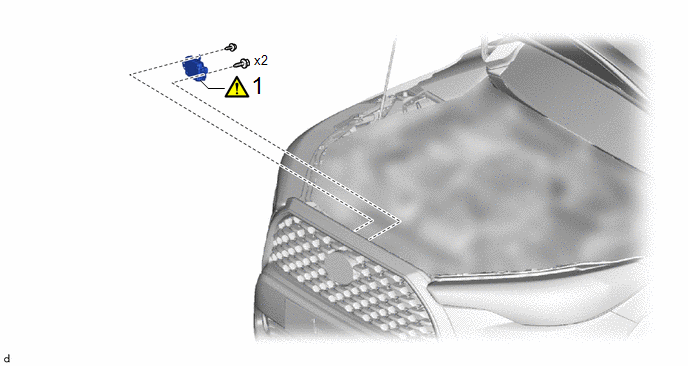

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

88211B

-

-

PROCEDURE

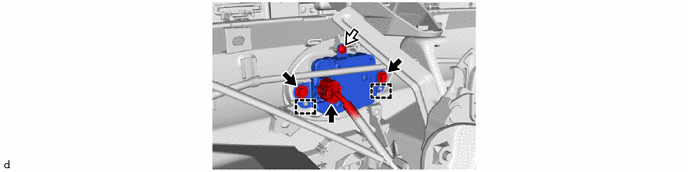

1. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

NOTICE:

Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

Bolt

Screw

    READ NEXT:

     Installation

    INSTALLATION CAUTION / NOTICE / HINT COMPONENTS (INSTALLATION) Procedure Part Name Code 1 INSTALL MILLIMETER WAVE RADAR

     Before Starting Driving Adjustment

    BEFORE STARTING DRIVING ADJUSTMENT CAUTION / NOTICE / HINT HINT: Purpose of millimeter wave radar beam axis learning If the installation position or orientation of the millimeter w

     Driving Adjustment

    DRIVING ADJUSTMENT CAUTION / NOTICE / HINT CAUTION: Radiofrequency radiation exposure information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled e
