Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

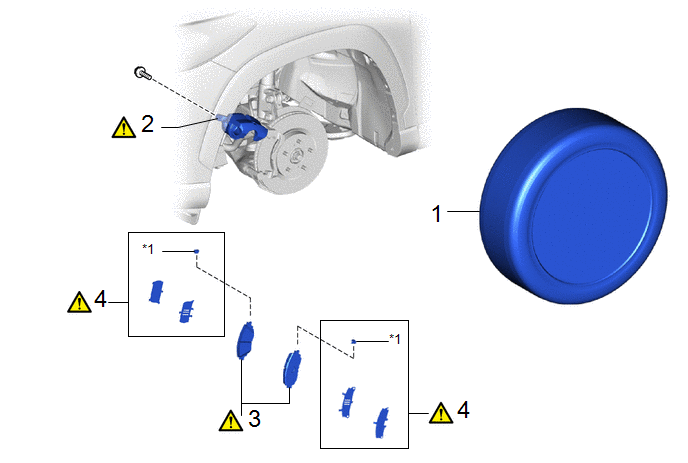

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT WHEEL

-

-

-

-

2

DISC BRAKE CYLINDER ASSEMBLY

47750

-

-

3

FRONT DISC BRAKE PAD KIT

04465

-

-

4

FRONT ANTI SQUEAL SHIM KIT

04945

-

-

*1

FRONT DISC BRAKE PAD WEAR INDICATOR PLATE

-

-

CAUTION / NOTICE / HINT

NOTICE:

  • Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.
  • After replacing the front disc brake pads, the brake pedal may feel soft due to clearance between the front disc brake pads and front disc. Depress the brake pedal several times until the brake pedal feels firm.
  • After replacing the front disc brake pads, always perform a road test to check the braking performance and check for vibrations.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT WHEEL

Click here

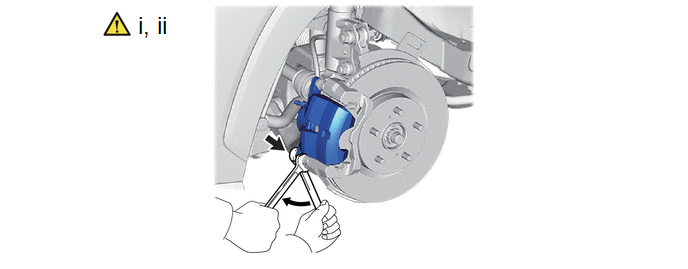

2. SEPARATE DISC BRAKE CYLINDER ASSEMBLY

(1) Hold the front disc brake cylinder slide pin (lower side) and remove the bolt.

(2) Pull the front disc brake cylinder assembly upward.

NOTICE:

Do not kink or damage the brake line.

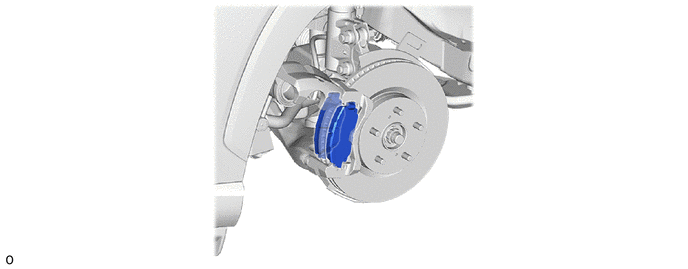

3. REMOVE FRONT DISC BRAKE PAD KIT

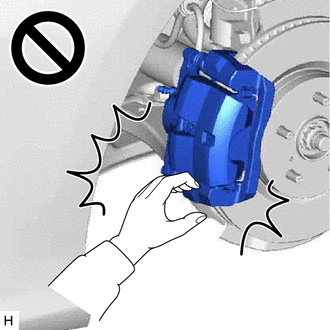

CAUTION:

  • Be careful not to get pinched by the front disc brake cylinder assembly or other parts when removing the front disc brake pads.
  • After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.
  • The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

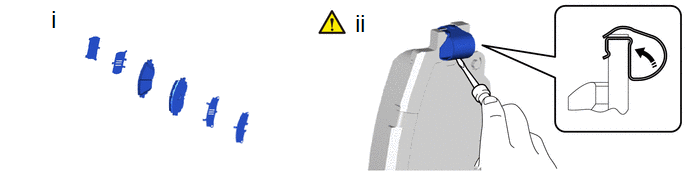

4. REMOVE FRONT ANTI SQUEAL SHIM KIT

(1) Remove the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim from each front disc brake pad.

(2) Using a screwdriver, remove the front disc brake pad wear indicator plate from each front disc brake pad.
