Toyota Corolla Cross: Front Turn Signal Light Bulb

Toyota Corolla Cross (2022-2026) Service Manual / General / Maintenance / Front Turn Signal Light Bulb

Removal

REMOVAL

CAUTION / NOTICE / HINT

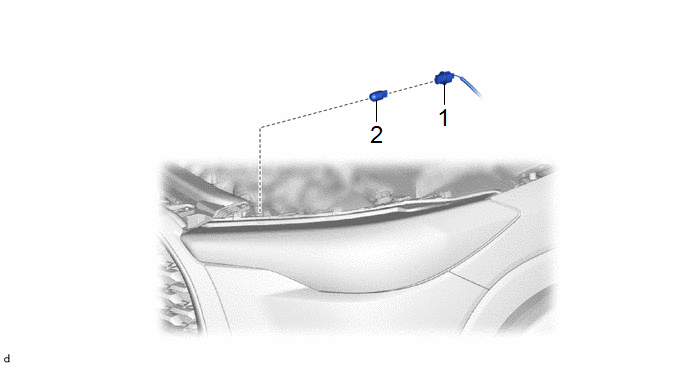

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT TURN SIGNAL LIGHT SOCKET

-

-

-

-

2

FRONT TURN SIGNAL LIGHT BULB

81510D

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

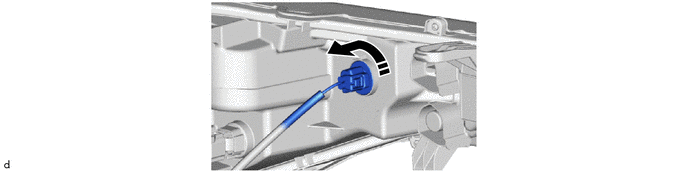

1. REMOVE FRONT TURN SIGNAL LIGHT SOCKET

Remove in this Direction

-

-

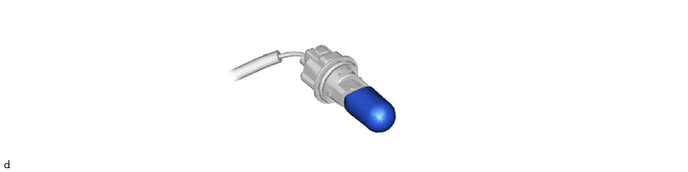

2. REMOVE FRONT TURN SIGNAL LIGHT BULB

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT TURN SIGNAL LIGHT BULB

81510D

-

-

-

2

FRONT TURN SIGNAL LIGHT SOCKET

-

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT TURN SIGNAL LIGHT BULB

2. INSTALL FRONT TURN SIGNAL LIGHT SOCKET
