Toyota Corolla Cross (2022-2026) Service Manual / General / Maintenance / Front Wiper Rubber

Removal

REMOVAL

CAUTION / NOTICE / HINT

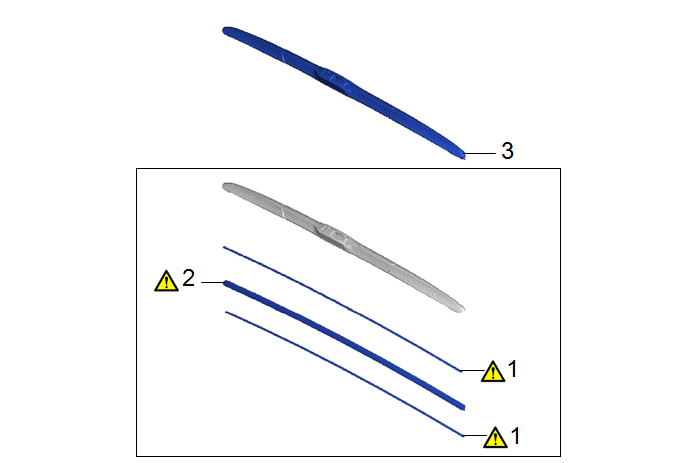

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT WIPER BLADE

85222A

-

-

2

WIPER RUBBER

85214B

-

-

-

3

WIPER BLADE RUBBER BACKING PLATE

-

-

-

-

CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT WIPER BLADE

*a

Holder

-

-

Pull Up

Remove in this Direction

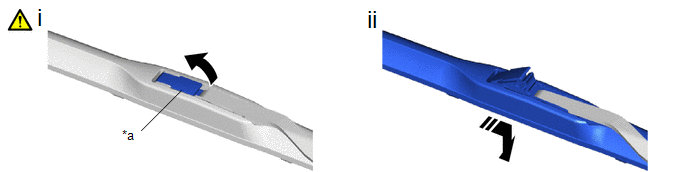

(1) Pull up the holder of the front wiper blade as shown in the illustration.

(2) Remove the front wiper blade from the front wiper arm as shown in the illustration.

NOTICE:

Place a piece of cloth between the front wiper arm and windshield glass to avoid damaging the windshield glass.

2. REMOVE WIPER RUBBER

3. REMOVE WIPER BLADE RUBBER BACKING PLATE

Installation

INSTALLATION

CAUTION / NOTICE / HINT

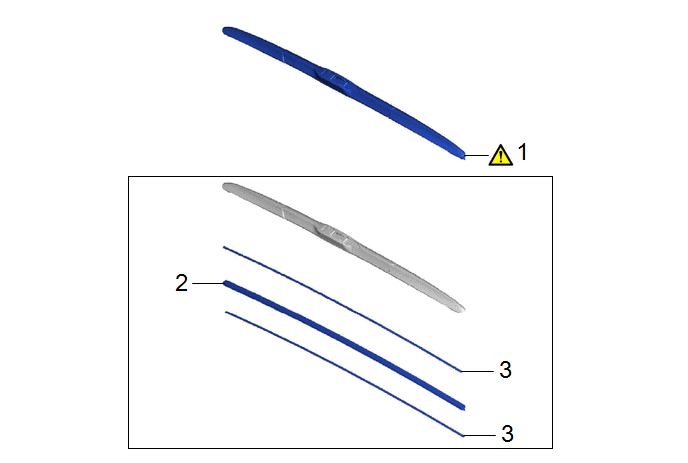

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

WIPER BLADE RUBBER BACKING PLATE

-

-

-

2

WIPER RUBBER

85214B

-

-

3

FRONT WIPER BLADE

85222A

-

-

-

CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL WIPER BLADE RUBBER BACKING PLATE

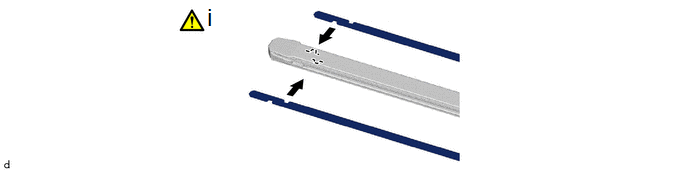

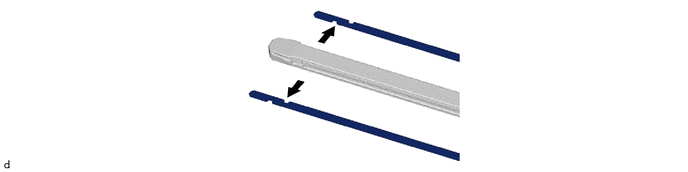

(1) Install the 2 front wiper rubber backing plates to the wiper rubber as shown in the illustration.

NOTICE:

  • Align the protrusions on the wiper rubber and the notches of the backing plates.
  • Align the curves of the backing plates and the windshield glass.

2. INSTALL WIPER RUBBER

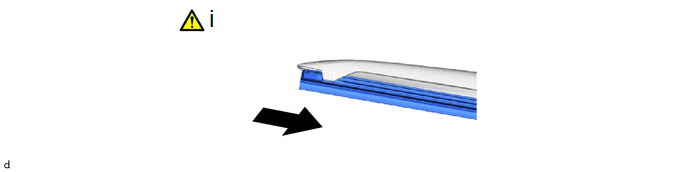

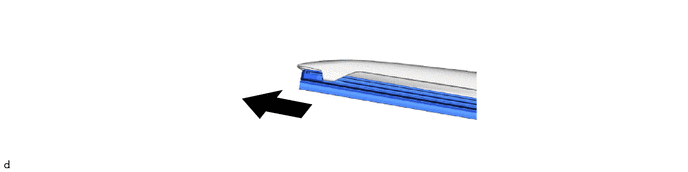

(1) Install the wiper rubber with the front wiper rubber backing plates to the front wiper blade as shown in the illustration.

NOTICE:

Push the wiper rubber and front wiper backing plates into the front wiper blade strongly to engage them securely.

3. INSTALL FRONT WIPER BLADE
