Removal

REMOVAL

CAUTION / NOTICE / HINT

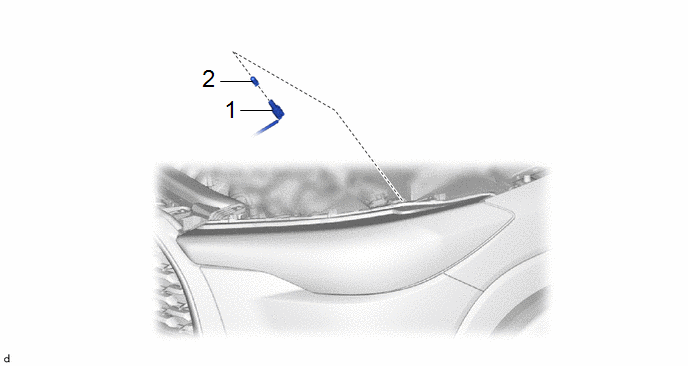

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT SIDE MARKER LIGHT SOCKET	-	-	-	-
2	FRONT SIDE MARKER LIGHT BULB	81710F	-	-	-

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT SIDE MARKER LIGHT SOCKET

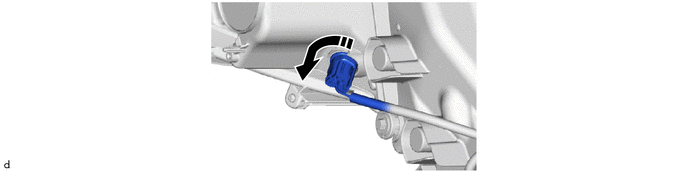

Remove in this Direction

2. REMOVE FRONT SIDE MARKER LIGHT BULB

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	FRONT SIDE MARKER LIGHT BULB	81710F	-	-	-
2	FRONT SIDE MARKER LIGHT SOCKET	-	-	-	-

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT SIDE MARKER LIGHT BULB

2. INSTALL FRONT SIDE MARKER LIGHT SOCKET
