Toyota Corolla Cross: Rear door child-protector
lock
The door cannot be opened
from inside the vehicle when
lock is set.
.png)
- Unlock
- Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

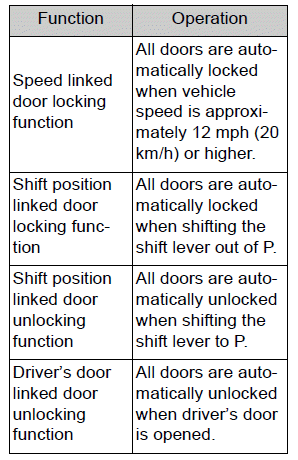

Automatic door locking
and unlocking systems
The following functions can be
set or canceled:
.png)
