Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

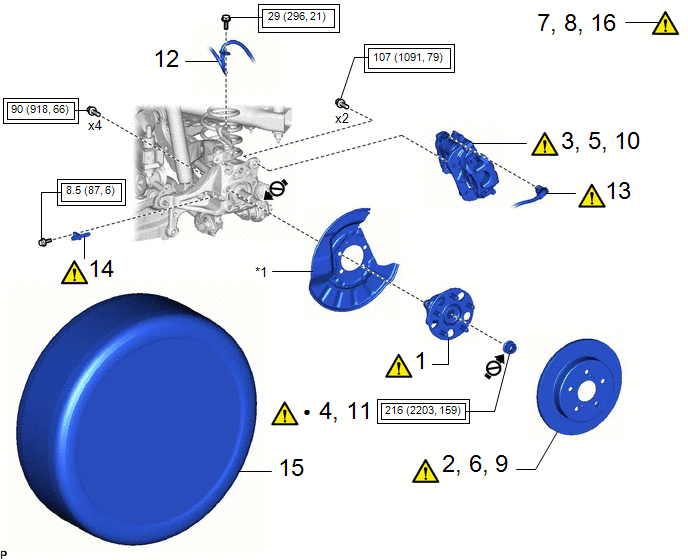

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR AXLE HUB AND BEARING ASSEMBLY

42450B

-

-

2

INSTALL REAR DISC

42431

-

-

3

INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

-

-

-

4

TEMPORARILY INSTALL REAR AXLE SHAFT NUT

42312B

-

-

5

SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

-

-

-

6

REMOVE REAR DISC

42431

-

-

7

INSPECT REAR AXLE HUB BEARING LOOSENESS

-

-

-

8

INSPECT REAR AXLE HUB RUNOUT

-

-

-

9

INSTALL REAR DISC

42431

-

-

10

INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

-

-

-

11

STAKE REAR AXLE SHAFT NUT

42312B

-

-

12

REAR FLEXIBLE HOSE

47319F

-

-

-

13

NO. 2 PARKING BRAKE WIRE ASSEMBLY

890C0A

-

-

14

REAR SKID CONTROL SENSOR

89544E

-

-

15

REAR WHEEL

-

-

-

-

16

CHECK FOR SPEED SENSOR SIGNAL

-

-

-

*1

REAR DISC BRAKE DUST COVER SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Do not apply lubricants to the threaded parts

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY

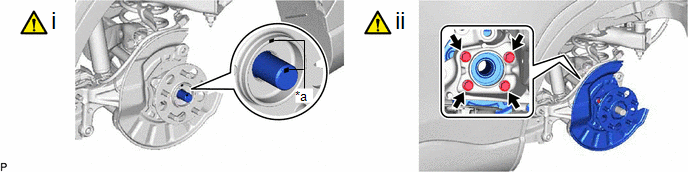

*a

Matchmark

-

-

(1) Install the rear axle hub and bearing assembly and rear disc brake dust cover sub-assembly to the rear drive shaft assembly.

NOTICE:

Align the matchmarks on the rear drive shaft assembly and rear axle hub and bearing assembly.

(2) Install the rear axle hub and bearing assembly to the rear axle carrier sub-assembly with the 4 bolts.

Torque:

90 N·m {918 kgf·cm, 66 ft·lbf}

NOTICE:

Do not damage the rear drive shaft outboard joint boot.

2. INSTALL REAR DISC

Click here

3. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

Click here

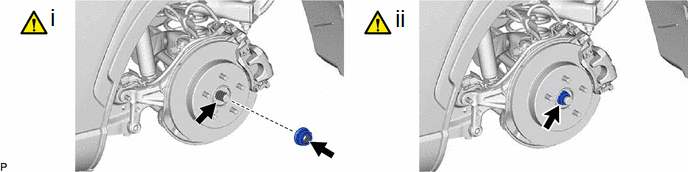

4. TEMPORARILY INSTALL REAR AXLE SHAFT NUT

(1) Clean the threaded parts on the rear drive shaft assembly and a new rear axle shaft nut using non-residue solvent.

NOTICE:

  • Be sure to perform this work even when using a new rear drive shaft assembly.
  • Keep the threaded parts free of oil and foreign matter.

(2) Using a 30 mm deep socket wrench, temporarily install the rear axle shaft nut.

Torque:

216 N·m {2203 kgf·cm, 159 ft·lbf}

NOTICE:

  • Stake the rear axle shaft nut after inspecting for looseness and runout in the following steps.
  • Keep depressing the brake pedal to prevent the rear drive shaft assembly from rotating.

5. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click here

6. REMOVE REAR DISC

Click here

7. INSPECT REAR AXLE HUB BEARING LOOSENESS

Click here

8. INSPECT REAR AXLE HUB RUNOUT

Click here

9. INSTALL REAR DISC

Click here

10. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

Click here

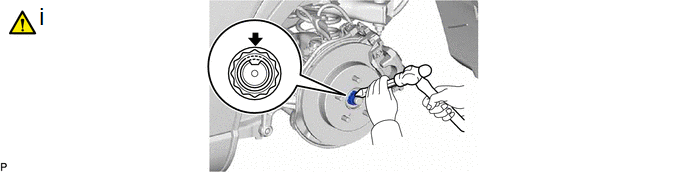

11. STAKE REAR AXLE SHAFT NUT

(1) Using a chisel and hammer, stake the rear axle shaft nut.

12. INSTALL REAR FLEXIBLE HOSE

Click here

13. CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click here

14. INSTALL REAR SKID CONTROL SENSOR

Click here

15. INSTALL REAR WHEEL

Click here

16. CHECK FOR SPEED SENSOR SIGNAL

  • for HEV Model:

    Click here

  • for Gasoline Model:

    Click here
