Toyota Corolla Cross: Parts Location

PARTS LOCATION

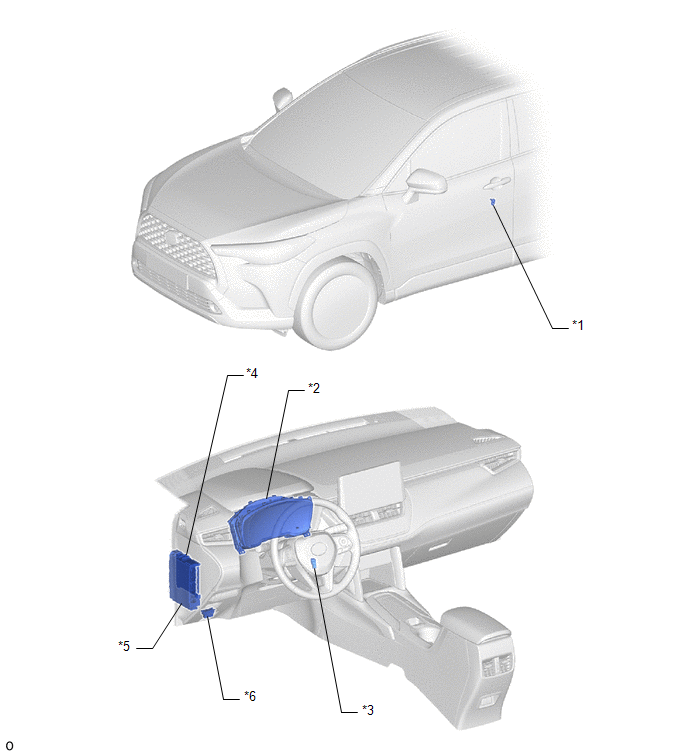

ILLUSTRATION

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH)

*2

COMBINATION METER ASSEMBLY

*3

UN-LOCK WARNING SWITCH ASSEMBLY

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

POWER DISTRIBUTION BOX ASSEMBLY

*6

DLC3
