Toyota Corolla Cross: Oil Pressure Sensor

Installation

INSTALLATION

CAUTION / NOTICE / HINT

Procedure

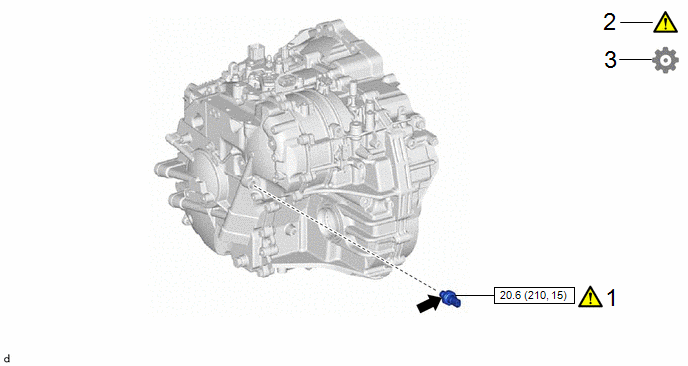

Part Name Code

1

OIL PRESSURE SENSOR

89637K

-

-

2

INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK

-

-

-

3

RESET MEMORY

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Toyota Genuine CVT Fluid FE

PROCEDURE

1. INSTALL OIL PRESSURE SENSOR

Toyota Genuine CVT fluid FE

-

-

(1) Coat the O-ring of the oil pressure sensor with Toyota Genuine CVT fluid FE.

NOTICE:

If reusing the oil pressure sensor, check that the O-ring is not damaged.

(2) Using a 27 mm deep socket wrench, install the oil pressure sensor to the rear transaxle case sub-assembly.

Torque:

20.6 N·m {210 kgf·cm, 15 ft·lbf}

NOTICE:

Be careful not to damage the O-ring.

(3) Connect the oil pressure sensor connector.

2. INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK

Click here

3. RESET MEMORY

NOTICE:

If continuously variable transaxle parts have been replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary.

Click here
