INSTALLATION

CAUTION / NOTICE / HINT

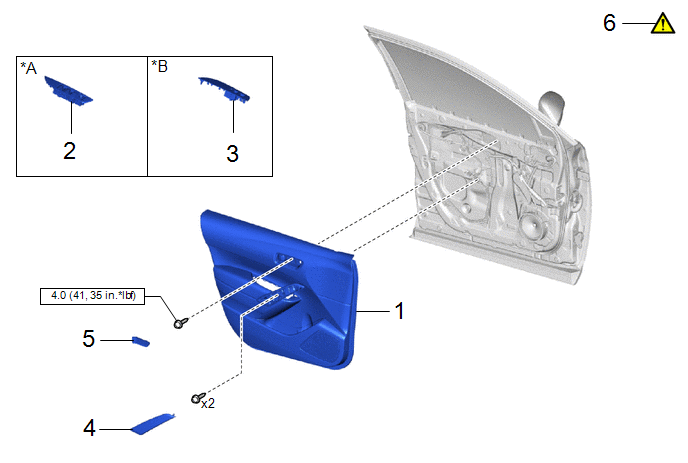

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT DOOR AMBIENT LIGHT (FRONT DOOR TRIM BOARD SUB-ASSEMBLY)

67602

-

-

-

2

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

-

3

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

-

4

DOOR ASSIST GRIP COVER

74646

-

-

-

5

FRONT DOOR INSIDE HANDLE BEZEL PLUG

69284F

-

-

-

6

INSPECT POWER WINDOW OPERATION

-

-

-

*A

for Driver Side

*B

for Front Passenger Side

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT DOOR AMBIENT LIGHT (FRONT DOOR TRIM BOARD SUB-ASSEMBLY)

Click here

2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

3. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

4. INSTALL DOOR ASSIST GRIP COVER

5. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

6. INSPECT POWER WINDOW OPERATION

Click here
