Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

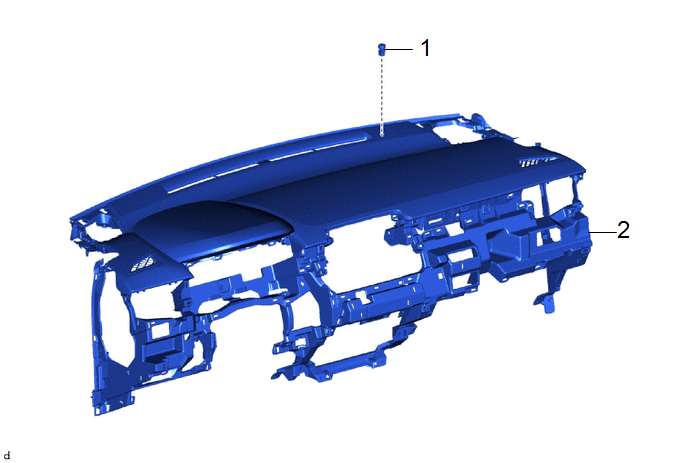

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

AUTOMATIC LIGHT CONTROL SENSOR

89120A

-

-

-

2

INSTRUMENT PANEL SAFETY PAD ASSEMBLY

-

-

-

-

PROCEDURE

1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

2. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click here
