Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Mirror (ext) / Outer Rear View Mirror Glass / Installation

INSTALLATION

CAUTION / NOTICE / HINT

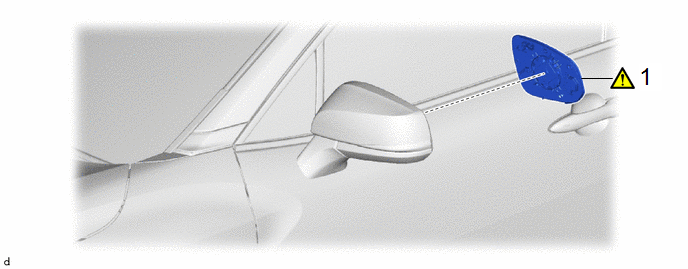

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

OUTER MIRROR

87961

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL OUTER MIRROR

NOTICE:

Do not push the outer mirror with excessive force. Doing so may break the mirror surface.
