Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

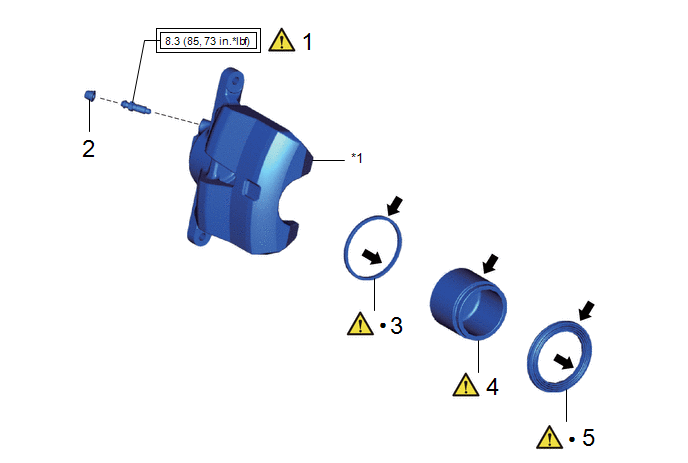

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

FRONT DISC BRAKE BLEEDER PLUG

47547B

-

-

2

FRONT DISC BRAKE BLEEDER PLUG CAP

31478B

-

-

-

3

PISTON SEAL

-

-

-

4

FRONT DISC BRAKE PISTON

47731

-

-

5

CYLINDER BOOT

-

-

-

*1

FRONT DISC BRAKE CYLINDER

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Lithium soap base glycol grease

-

-

CAUTION / NOTICE / HINT

PROCEDURE

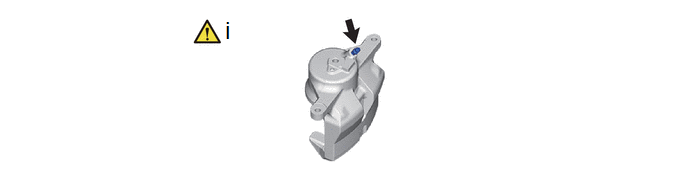

1. TEMPORARILY TIGHTEN FRONT DISC BRAKE BLEEDER PLUG

(1) Temporarily install the front disc brake bleeder plug to the front disc brake cylinder.

HINT:

Fully tighten the front disc brake bleeder plug after bleeding the system.

2. INSTALL FRONT DISC BRAKE BLEEDER PLUG CAP

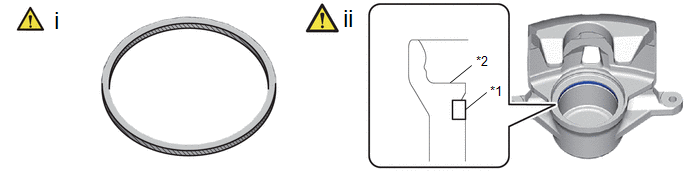

3. INSTALL PISTON SEAL

*1

Piston Seal

*2

Front Disc Brake Cylinder

Lithium Soap Base Glycol Grease

-

-

(1) Apply a light layer of lithium soap base glycol grease to the entire circumference of a new piston seal.

(2) Install the piston seal to the front disc brake cylinder.

NOTICE:

Securely install the piston seal into the groove of the front disc brake cylinder.

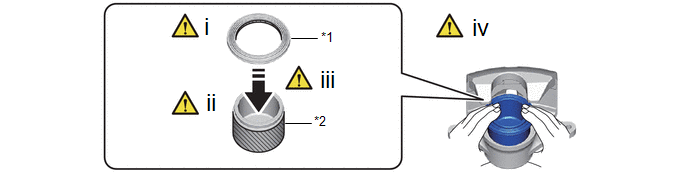

4. INSTALL FRONT DISC BRAKE PISTON

*1

Cylinder Boot

*2

Front Disc Brake Piston

Lithium Soap Base Glycol Grease

-

-

(1) Apply a light layer of lithium soap base glycol grease to the entire circumference of a new cylinder boot.

(2) Apply a light layer of lithium soap base glycol grease to the contact surfaces of the front disc brake piston.

(3) Install the cylinder boot to the front disc brake piston.

NOTICE:

Securely install the cylinder boot into the groove of the front disc brake piston.

(4) Install the front disc brake piston to the front disc brake cylinder.

NOTICE:

Do not forcibly install the front disc brake piston into the front disc brake cylinder.

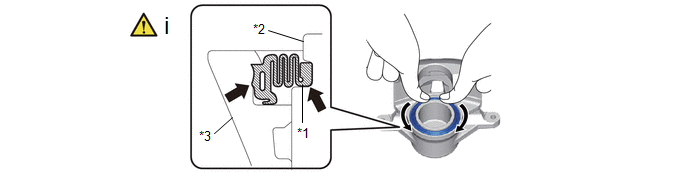

5. INSTALL CYLINDER BOOT

*1

Cylinder Boot

*2

Front Disc Brake Piston

*3

Front Disc Brake Cylinder

-

-

(1) Install the cylinder boot to the front disc brake cylinder as shown in the illustration.

NOTICE:

  • Securely install the cylinder boot into the groove of the front disc brake cylinder and front disc brake piston.
  • Do not damage the cylinder boot.
